Ismatec™WW-78021-12 高压泵与卫生的Q系列泵头，0.064至77毫升/分钟，100磅，陶瓷活塞/ 316不锈钢阀体/陶瓷内衬

Ismatec™高压泵与卫生的Q系列泵头，0.064至77毫升/分钟，100磅，陶瓷活塞/ 316不锈钢阀体/陶瓷内衬

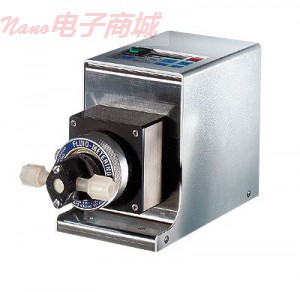

Ismatec™ high-pressure pump with sanitary Series Q pump heads, 0.064 to 77 mL/min, 100 psi, ceramic piston/316 SS body/ceramic liner

获取高的压力，精确分配，可重复性于一泵

驱动器配有6个点胶模式在预设时间内体积，体积的步骤，时间，间歇时间或体积，无滴漏，或阀门操作

控制速度，启动/停止流动，或改变流体方向手动或通过模拟输入信号或RS-232接口远程操作

Q系列柱塞泵头（含）无阀门堵塞或磨损

可以被存储在所述泵（Q系列泵的泵头）的操作参数中的四组。RS-232接口允许通过PC机的泵控制，或用于级联8个泵。外壳IP65额定系列Q泵和IP30额定R系列泵。

包含：一个系列Q或R系列柱塞泵头三脚美国与安装硬件和一个6英尺长电源线插头。230 VAC型号包括IEC 320/CEE的22个欧洲插头。这些型号是特定国家的插头/ 电源线出货，订货时请注明最终目的地

Get high pressures, accurate dispensing, and great repeatability—all with one pump

Drives feature six dispensing modes—volume within a preset time, volume in steps, time, intermittent in time or volume, drip-free, or valve operation

Control speed, start/stop flow, or change fluid direction manually or remotely via an analog input signal or RS-232 interface

Series Q piston pump heads (included) have no valves to clog or wear out

Up to four sets of operating parameters can be stored in the pump (for pumps with Series Q pump heads only). RS-232 interface allows for control of pump via a PC or for cascading up to eight pumps. Housing is IP65 rated for Series Q pumps and IP30 rated for Series R pumps.

What's Included:

a Series Q or Series R piston pump head with

mounting hardware and a 6-ft power cord with three-prong

U.S. plug. 230 VAC models include an IEC 320/CEE 22 European

plug. These models are shipped with country-specific plug/

cord; please specify ultimate destination when ordering
