Ismatec™ISM1090 Ecoline小型盒式磁带泵，4通道，12辊，115 / 230 VAC

Ismatec™Ecoline小型盒式磁带泵，4通道，12辊，115 / 230 VAC

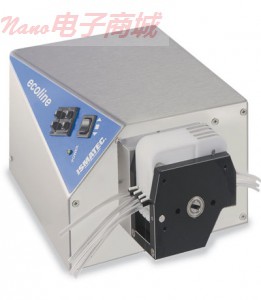

Ismatec™ Ecoline minicartridge pump, 4 channels, 12 rollers, 115/230 VAC

泵头和驱动器预装，方便安装和操作

这些经济泵包括预装的头，简单的设置和操作。启动，停止和单开关回流。泵壳有倾斜的速度控制显示屏，方便用户访问。不锈钢外壳，确保耐久性。四个稳定脚允许您堆叠多个驱动器。使用转子泵配备1.6毫米壁管。

型号78022-10和78022-20具有自定心的凸面滚子延长油管的使用寿命和温柔流体完美的介质含有细胞培养。泵78022-50利用Masterflex 头的Masterflex 管。泵78022-40和78022-60利用多通道的按钮泵头。转速控制在1％。凸辊，确保自动定心减少油管磨损。控制驱动器的速度通过模拟输入信号（0到5 VDC，0至10 VDC，0至20 mA或4至20 mA）远程启动/停止驱动器或反向通过触点闭合（八针DIN）。从现有的仪器驱动输入信号驱动功能。

CLICK'N'GO-TM ISMATEC SA

ISMA TEC-REG TM ISMATEC SA

Heads and drives are preassembled for easy setup and operation

These economical pumps include preassembled heads for simple setup and operation. Start, stop, and reverse flow with a single switch. Pump housings feature angled speed control displays for easy user access. Stainless steel housings ensure durability. Four stabilizing feet allow you to stack multiple drives. Pumps come with rotors for use with 1.6 mm wall tubing.

Models 78022-10 and 78022-20 have self-centering convex rollers which extend tubing life and are gentle on fluid—perfect for media containing cell cultures. Pump 78022-50 utilizes a Masterflex head and Masterflex?tubing. Pumps 78022-40 and 78022-60 utilize a multichannel pumphead.Push-button speed control in steps of 1% of rpm. Convex rollers ensure automatic centering—minimizes tubing wear. Control drive speed remotely via an analog input signal (0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, or 4 to 20 mA); start/stop drive or reverse direction via contact closure (eight-pin DIN). Input signals from your existing instruments actuate drive functions.

CLICK'N'GO—TM Ismatec SA

ISMA TEC—Reg TM Ismatec SA
