Ismatec™CN-78017-42 紧凑型数字泵，4通道，1到100转，0.003至31毫升/分钟，115 / 230 VAC

Ismatec™紧凑型数字泵，4通道，1到100转，0.003至31毫升/分钟，115 / 230 VAC

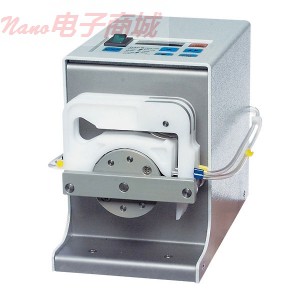

Ismatec™ compact digital pump, 4 channels, 1 to 100 rpm, 0.003 to 31 mL/min, 115/230 VAC

节省空间设计四个泵通道，而无需占用太多的工作台空间

迷你盒式设计，可快速更换甭管

这些泵配备了新设计的弹簧加载CLICK'N'GO迷你盒最佳的咬合没有调整。墨盒接受不同尺寸的管和泵头上，仅需要按一下就可以按在泵头上。。自润滑，PTFE填充尼龙辊提供稳定的流量减少油管磨损。反向流动方向翻转的开关。

选择双通道或四通道泵;八辊泵即使流动也很平稳。所有的泵包括迷你盒每个通道和一个6英尺长电源线插头。

提供ISMATEC的以实惠的价格选择可选minicartridges的可调闭塞手动改变上每个通道。Reglo的快速泵压力。这种泵的方便管床设计使用标准的管材，允许流体快速线更换。快速Reglo包括模拟或数字输入以及模拟输出。该泵应仅用于聚乙烯?聚乙烯? LFL，聚乙烯?燃料和润滑油，用Norprene ?，过氧化物硫化硅胶管。

CLICK'N'GO-TM ISMATEC SA

ISMA TEC-REG TM ISMATEC SA

Space-saving design provides up to four pumping channels without using much benchtop space

Minicartridge design allows quick tubing changes

These pumps feature newly designed spring loaded CLICK’N’GO minicartridges that provide optimum occlusion with no adjustment. Cartridges accept different sizes of tubing and just snap into place on the pump head. Self-lubricating, PTFE-filled nylon rollers provide consistent flow with reduced tubing wear. Reverse your flow direction with the flip of a switch.

Select two- or four-channel pumps; eight roller pumps provide smooth, even flow. All pumps include minicartridges for each channel and a 6-ft cord with plug. Order extra minicartridges below.

Choose the optional minicartridges with adjustable occlusion to manually vary pressure on each channel.The Reglo Quick pump offers Ismatec? quality at an affordable price. Designed to use standard tubing, this pump's easily accessible tubing bed allows for quick fluid line changeovers. The Reglo Quick includes either analog or digital input as well as analog output. This pump should be used only with Tygon, Tygon LFL, Tygon Fuel and Lubricant, Norprene?, and peroxide-cured silicone tubing.

CLICK'N'GO—TM Ismatec SA

ISMA TEC—Reg TM Ismatec SA
