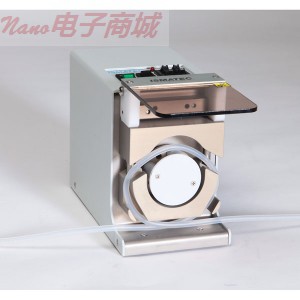

Ismatec™ISM829 紧凑型模拟泵，2个通道，1.6至每分钟160转，0.005至59毫升/分钟，115/230 VAC

Ismatec™紧凑型模拟泵，2个通道，1.6至每分钟160转，0.005至59毫升/分钟，115/230 VAC

IsmatecTM compact analog pump, 2 channels, 1.6 to 160 rpm, 0.005 to 59 mL/min, 115/230 VAC

节省空间设计四个泵通道，而无需占用太多的工作台空间

迷你盒式设计，可快速更换甭管

这些泵配备了新设计的弹簧加载CLICK'N'GO™迷你盒最佳的咬合没有调整。墨盒接受不同尺寸的管和泵头上，仅需要按一下就可以按在泵头上。。自润滑，PTFE填充尼龙辊提供稳定的流量减少油管磨损。反向流动方向翻转的开关。

选择双通道或四通道泵;八辊泵即使流动也很平稳。所有的泵包括迷你盒每个通道和一个6英尺长电源线插头。

选择可调可选的迷你盒.每个通道手动变压。速度可调1％（0〜99％）。远程控制速度与模拟输入信号（0至5 VDC，0至10 VDC，0至20 mA或4至20 mA）;通过触点闭合（DB15内孔）启动/停止泵或改变流向;

CLICK'N'GO—TM Ismatec SA

ISMA TEC-REG TM ISMATEC SA

Space-saving design provides up to four pumping channels without using much benchtop space

Minicartridge design allows quick tubing changes

These pumps feature newly designed spring loaded CLICK’N’GO™ minicartridges that provide optimum occlusion with no adjustment. Cartridges accept different sizes of tubing and just snap into place on the pump head. Self-lubricating, PTFE-filled nylon rollers provide consistent flow with reduced tubing wear. Reverse your flow direction with the flip of a switch.

Select two- or four-channel pumps; eight roller pumps provide smooth, even flow. All pumps include minicartridges for each channel and a 6-ft cord with plug. Order extra minicartridges below.

Choose the optional minicartridges with adjustable occlusion to manually vary pressure on each channel.Speed is adjustable in 1% steps (0 to 99%). Control speed remotely with an analog input signal (0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, or 4 to 20 mA); start/stop pump or change flow direction via contact closure (DB15 female);

CLICK'N'GO—TM Ismatec SA

ISMA TEC—Reg TM Ismatec SA
