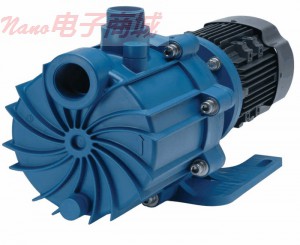

Finish Thompson 聚丙烯磁力驱动自吸式离心油泵，89GPM - 50FT，三相，1HP TEFC电机

Finish Thompson 聚丙烯磁力驱动自吸式离心油泵，89GPM - 50FT，三相，1HP TEFC电机

Polypropylene Magnetic Drive Self-Priming Centrifugal Pumps, 89GPM - 50FT, three phase, 1HP TEFC Motor

通过可靠的无泄露泵技术来降低经营成本

卓越吸程能力可将流体从深达25英尺以下的泵吸出来

在短短90秒内从18英尺的快速启动

功能强大，稀土磁耦合（60赫兹）使用标准的NEMA或IEC（50赫兹）电机

这些自吸式离心油泵的用途极其广泛。吸能力强，允许泵的处理难以应用的标准离心泵。这些应用包括从下面抽液排空油罐卡车或轨道车，从高大的散装储罐的顶部转移液体，以减少从侧壁安装密封接头泄漏的可能性。

泵提供了许多更新的功能，提高性能。涡壳和叶轮的设计可减少高效率能源使用量，尤其是与其他泵技术相比。其结果是高工作压力，高比重液可以安全地泵送。另一个好处是保护，防止意外的系统压力激增。标准的NPT 或BSP连接方便安装。对于腐蚀性液体可选择防潮材料设计。

Lower cost of ownership achieved by reliable sealless pump technology

Superior lift capability lifts fluid from as deep as 25 feet below the pump

Fast priming—primes from 18 feet in as little as 90 seconds

Powerful, rare earth magnetic coupling uses standard NEMA (60 Hz) or IEC (50 Hz) motor

These self-priming centrifugal pumps are extremely versatile. The priming ability allows the pumps to handle applications difficult for standard centrifugal pumps. Such applications include pumping fluid from below grade, emptying tanker trucks or rail cars, and transferring fluids from the top of tall bulk storage tanks to reduce the possibility of leaks from sidewall-mounted bulkhead fittings.

Pumps offer many updated features which improve performance. The volute and impeller design allow for a high efficiency—this results in a reduction in energy usage, especially when compared to other established pump technologies. As a result of the high working pressure, high specific gravity fluids can be safely pumped. Another benefit is the protection against unexpected surges in system pressure. The standard

NPT or BSP connections allow for easy installation. The wetted materials of construction were chosen and engineered for aggressive liquids.
