Wika 数字气压校准器

Wika 数字气压校准器

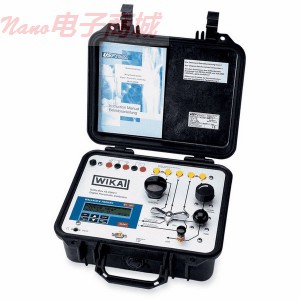

紧凑型校准器，方便，准确校准

使用这个数字NIST可追踪压力校验仪，大多数气动设备的现场校准，过程无需拆卸设备。

校准测量表压，差压，真空，毫安，电压。旋拧开关测量电流或电压。

通过液晶显示屏查看测量结果，显示单位有9个可供用户选择(psi, kPa, kg/cm2, cm H2O, mm H2O, bar, mm Hg; in. H2O at 40°F and 60°F)。通过安装在面板上的压力连接器，阀门，控制器轻松连接和校准设备。连接到空气可达90 psi最大。内置24 VDC回路电源读取当前测量结果同时提供电源。

校准器包括六个¼“管螺纹适配器，可溯源NIST证书，5个镍镉充电AA电池和AC适配器/充电器适配器。

Compact calibrator for convenient, accurate calibration

Use this digital NIST-traceable pressure calibrator to calibrate most pneumatic equipment on-site without removing the devices from your process.

Calibrator measures gauge pressure, differential pressure, vacuum, mA, and voltage. Measure current or voltage at the flip of a switch. View measurements via the LCD, which displays pressure in nine user-selectable units (psi, kPa, kg/cm2, cm H2O, mm H2O, bar, mm Hg; in. H2O at 40°F and 60°F). Easily connect and calibrate equipment via panel-mounted pressure connections, valves, and controls. Connect to air supply up to 90 psi maximum. A built-in 24 VDC loop power supply simultaneously provides power to a device while reading current measurement.

Calibrator includes six adapters for ¼" pipe thread, NIST-traceable certificate, five NiCd rechargeable AA batteries, and AC adapter/recharger.
