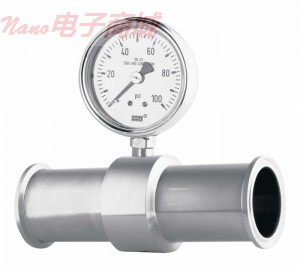

Wika 50986300 卫生压力表

Wika 50986300 卫生压力表

测量快速流动和高温介质的压力

内嵌密封符合3A标准卫生应用

适合于就地清洁（CIP）

内嵌密封，使测量压力不介质污染。内嵌式密封的目的防护中等粘性压力介质卫生，快速流动腐蚀，污染，热或光。该密封件包含一个圆筒形的隔膜，以避免在工艺流程中出现的任何干扰，通过压力表或变送器可以测量压力，使用户具有本地的或远程输出的功能。内嵌密封过程连接提供3/4,1,1 1/2和2"Tri-Clamp®。其他过程连接尺寸也可提供;详细信息请呼叫应用专家。隔膜密封，卫生压力表，变送器所有316不锈钢浸湿部件。压力测量仪器全部安装在工厂。

压力表有一个2 1/2"表盘底部安装仪器连接密封，压力表还有316不锈钢弹簧管。箱子是304不锈钢。压力变送器是NEMA 4X额定耐冲洗和腐蚀性环境。机身材料为304不锈钢。内部电子100％环氧树脂浇注封装。紧凑的单位测量只有4”H×2”直径。

Measure pressure of rapidly flowing and high-temperature media

Inline seal meets 3A criteria for sanitary applications

Suitable for clean-in-place (CIP)

Inline seals enable measurement of pressure without contamination of media. Inline seals are intended for hygienic, rapidly flowing corrosive, contaminated, hot, or light to medium viscous pressure media.The seal contains a cylindrical diaphragm that avoids any interruptions with the process flow and can measure pressure via gauge or transmitter, enabling user to have either local or remote output. Process connection of inline seal is available in 3/4,1,1 1/2 and 2" size Tri-Clamp®. Other process connection sizes are available; call an Application Specialist for information. Diaphragm seal, sanitary gauge, and transmitter all have 316 stainless steel wetted parts. Pressure measurement instruments are installed at the factory.

Pressure Gauges have a 2 1/2" dial with bottom-mount instrument connection to seal and have a 316 stainless steel Bourdon tube. Case is 304 stainless steel.

Pressure Transmitters are NEMA 4X rated for washdown and corrosive environments. Body material is 304 stainless steel. Internal electronics are 100% potted in epoxy casting resin. Compact unit measures only 4"H x 2" diameter.
