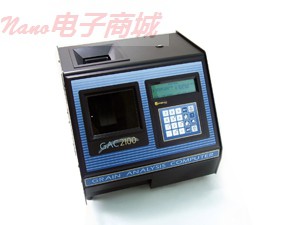

美国帝强GAC2100BLUE高精度快速谷物水分测定仪

GAC2100BLUE是一种极方便而且可靠的高精度谷物水分快速测定仪。它可以像便捷式谷物分析仪一样，在15秒钟内测试出谷物样品的水分，样品温度和容重。但它的精确度远远高于便携式谷物分析仪。GAC2100 BLUE测试的水分结果与烘箱法测定结果的误差不超过±0.2%，并且GAC2100BLUE还可以测试颗粒饲料。

技术参数,功能特点

测试原理：电容、传感器和称重设置 校准容量：内存可容纳64套校准

适用范围：谷物、油料种子、草籽、蔬菜种子、豆类、颗粒状饲料

语言： 共8种，供用户自行选择

显示参数：水分、温度和容重

信息输出：2个标准的RS232

打印机端口

水分范围：5-45% （取决于谷物的校准）

温度差异：室温与谷物样品之间的温度差异

安装要求

不应大于20℃ 操作温度：5℃-45℃

温度补偿：自动化 水分要求： 5-95%非凝结

重复率： ±0.1% 电源供给：85-264V/48-62Hz/20VA（取决于谷物与校准）

规格：

分辨率： 0.1%的水分 重量：11.8千克（26磅）

样品形状要求：颗粒状 装船重量：16.0千克（35.5磅）

样品量： 250克左右

主要特点：

全自动的测定仪

⊙ 自动进样

⊙ 自动称重 最准确地帝强谷物快速水分仪

⊙ 自动补偿样品温度

⊙ 可与烘箱法测试结果相媲美

⊙ 自动补偿表面水

⊙ 操作人员不能操纵测试结果

⊙ 可由计算机远程操作

⊙ 校准参数由强大的专业软件运算而得

The GAC2100B, blue in color, is the NTEP approved model for use in all commercial, Legal for Trade, applications within the U.S. This model has all of the features of the required of NTEP moisture testers, such as built-in hopper sensors which sense when enough grain is present for testing. Simply fill the hopper, press the load button and the test is performed automatically. Moisture percentage, test weight or density, and temperature are displayed on a large LCD backlit display. It has a built-in memory for 64 standard grain calibrations and can display in 8 different languages. This tester can also be set-up to integrate with your automatic grain sampling system for smooth flow-through operation. The GAC2100B has new feature. The feature is that the drawer has to be inserted into the machine before the doors will open and the sample will drop into the test cell. The drawer that comes with the machine has a magnet attached to it that closes a switch, which enables the strike off motor to operate. For those that want the sample to flow through the unit upon completing a measurement, the bottom of the drawer may be removed while allowing the drawer (with magnet) to be inserted back into the unit. This provides a drawer without a bottom that acts somewhat like a funnel. This in turn allows the grain to flow through the GAC2100B into a larger container of choice. This feature was added to keep the operator from spilling grain on their counter without having the drawer inserted. The GAC2100BSA model is only available for our international customers, where the NTEP requirements do not apply. This model does not have the extended sample hopper for detection of sample volume. This version has all the same features that the Model GAC2100B has, but can not be used within the U.S. for commercial grain testing.

Actual dimensions 16"L x 15.25"W x 14.75"H. Ship dims 23"L x 22"W x 19"H. Net weight 26 lbs., Ship weight 36 lbs.
