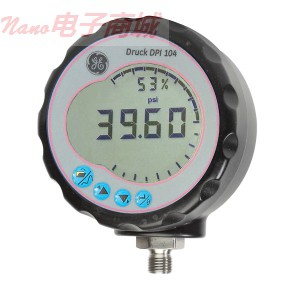

Druck DPI 104 30PSIA 1/4NPT 数字测试压力表

Druck DPI 104 30PSIA 1/4NPT 数字测试压力表

作为测试和测量仪器在使用过程中进行监测和控制，

标准本质安全版本

0.05％满量程精度

11个可选择的压力单位

IDOS兼容​​RS232串行接口

测量仪是一种微处理器控制的精密测试测量仪，该测量仪可靠，经济，适用范围广的压力感测应用。测量仪具有±0.05％的满量程精度，最小/最大，去皮，和报警功能，模拟信号输出，压力切换测试功能。测量仪可以作为一个独立的过程指示，或者使用手动泵作为压力参考。这种压力计有一个非常独特的功能，用户可调节安装位置，。此压力计的外壳周围的压力，装修面板可旋转，最佳可见度任何方向旋转320°。除了数字压力指示，压力表有一个圆形的20段条形图快速快速直观地表示。该指数也有能力提供1到5伏直流电输出控制和指示。

Use in process monitoring and control and as a test and measurement instrument

Standard and Intrinsically-safe versions

0.05% full-scale accuracy

Eleven selectable pressure units

IDOS compatible and RS232 serial interface

Gauge is a microprocessor-controlled precision test gauge that is a reliable and economic solution for a wide range of pressure sensing applications. Gauge features ±0.05% full-scale accuracy, min/max, tare, and alarm functions, analog output, and a pressure switch test function. Gauge can be used as a stand-alone process indicator or as a pressure reference for use with hand pumps.A very unique feature of this guage is the adjustable mounting positions that the user can have. The housing of this gauge rotates 320° around the pressure fitting—faceplate can be rotated in any direction for optimum visibility. In addition to the numeric pressure indication, gauge has a round twenty-segment bar graph for quick quick visual indication. The gauge also has the capability of providing a 1 to 5 VDC output for control and indication.
