Masterflex 77964-20 I / P数字流程泵系统的不锈钢外壳，易装泵头0.1至650转，90到260 VAC

Masterflex I / P数字流程泵系统的不锈钢外壳，易装泵头0.1至650转，90到260 VAC

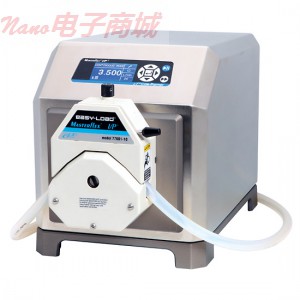

Masterflex I/P Digital Process Pump System with Stainless Steel Housing and Easy-Load Pump Head; 0.1 to 650 rpm, 90 to 260 VAC

Precision digital drives offer three dispensing modes and precision low-maintenance motors

Flow range is 0.001 LPM to 8.0 LPM with included tubing

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)

Anti-drip function ensures dispense accuracy

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Remote control capabilities via watertight connection

– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V

– Pumping direction requires open collector or contact closure

– Start/stop/purge requires open collector or contact closure

– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector

Model 77964-20 features a 316 stainless steel housing with an anodized aluminum base. Ideal for pharmaceutical, dairy, biotech, and food and beverage applications.

These pump systems give you rugged performance and precise digital control. Ideal for fluid transfer, dispensing, and metering applications in laboratory, process, and industrial environments including pharmaceutical, food & beverage, dairy, chemical, manufacturing, and water treatment.

Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. To increase dispense accuracy and prevent dripping, programmable anti-drip function briefly reverses motor at end of dispense cycle. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.

The IP66, NEMA 4X rated housings are completely sealed, easy-to-clean, and resistant to commonly used cleaning and sanitizing solutions. The reversible, maintenance-free brushless motor offers a full complement of remote control capabilities allowing easy integration into your automated processes. Drives feature a membrane keypad for easy programming. Select tubing size and enter desired flow rate—drive locks in required rpm.
What's Included:
pump head, tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering



Specifications
Min flow rate (LPM)		0.001
Max flow rate (LPM)		8.0
Tubing		C-Flex ULTRA I/P 73 06434-73 (10 ft)
Drive		77420-10
Control type		Digital Variable Speed
Pump head		77601-10
rpm		0.1 to 650
Power (VAC)		115 / 230
Power (Hz)		50/60
Power (Amps)		4.5 / 2.5
Manufacturer number		77964-20
Product Type		Peristaltic Pump
Pump Series		I/P
Washdown capable		Yes
Brand		Masterflex

精密数字驱动器提供三种分配模式和精度低维护电机

流量范围为0.001 LPM 8.0 LPM包括油管

图形液晶显示四种工作模式，连续运行，定时分配，复制分配量分配。泵的性能不断。

菜单驱动的界面，可以选择七种语言，编程及操作

免除毫升每毫升容积分配，0.001〜9999毫升;复制1至9,999点胶周期;或SEC时间每次分配周期之间的时间间隔（1到9,999秒）

防滴漏功能，确保免除准确性

在任一方向可逆电机吹扫之前或之后抽泵液管

无刷免维护电机提供±0.1％的速度控制精度1量程比6000

远程控制功能，通过水密连接

- 可扩展速度控制输入0至20 mA，4至20 mA，0〜10 V

- 抽水方向需要集电极开路或触点闭合

- 启动/停止/清除需要集电极开路或触点闭合

- 可扩展的转速计输出0至20 mA，4至20 mA，0〜10 V，集电极开路

型号77964-20 316不锈钢外壳，阳极氧化铝基地。制药，乳品，生物技术，食品和饮料应用的理想选择。

这些泵系统为您提供坚固耐用的性能和精确的数字控制。流体输送，分配，在实验室和计量应用过程中，包括制药，食品饮料，乳品，化工，制造，水处理和工业环境的理想选择。精密驱动器具有可编程分配间隔，可以让你设置之间的延迟免除方便，自动点胶周期按时间或按体积。为了提高分配的准确性和防止滴水，可编程防滴漏功能简要电机反转点胶周期结束。精确的PWM速度控制（±0.1％）的精度和效率最大化，而 ​​无刷电机，为您提供安静，免维护可靠性。程序校准，确保分配和显示精度驱动器存储校准值每管大小。计划器通过简单的键盘膜，键盘锁定/解锁功能保护设置，NEMA 4X，IP66额定外壳是完全密封，易清洁，耐常用的清洗和消毒液。可逆的，免维护的无刷电机提供了完整的远程控制功能，方便地集成到自动化流程。驱动器配有键盘膜，易于编程。选择管的大小，然后输入所需的流量驱动器锁在所需的转速。包括：泵头，油管和6英 ​​尺（1.8米）线与IEC 320/CEE22插座。这些模型是特定国家的插头/电源线出货，订货时请注明最终目的地



产品规格
最小流量（LPM）		0.001
最大流量（LPM）		8
管道		C-Flex的ULTRA I / P 73  06434-73（10英尺）
驱动		77420-10
控制类型		数字变频调速
泵头		77601-10
转		0.1至650
电源（VAC）		115/230
功率（赫兹）		50/60
功率（安培）		4.5 / 2.5
制造商数量		77964-20
产品类型		蠕动泵
水泵系列		I / P
直冲能力		是
牌		的Masterflex
