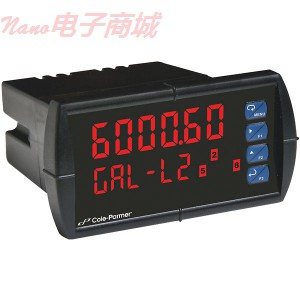

Cole-Parmer PD6300-7R0-CP 脉冲累加器

Cole-Parmer PD6300-7R0-CP 脉冲累加器

大型双行6位数字显示，即使在阳光下也易于读数

NEMA 4X，IP65前

这些面板仪表是科尔帕默1/8 DIN仪表家族强大的一员。这些“新生代”型号最重要的特点之一是2个或4个继电器4-20 mA输出。新双行显示屏比标准面板显示信息多出2倍，提供一个更好的过程控制画面，以便更好的过程控制评估。

即使在阳光下显示屏也是可读的，使用功能键，可以进行切换程序，两行显示信息，使您更轻松地设置仪表。这些面板仪表接受0至20mA，4至20mA，0?5V，1至5V，±10V输入。他们可以计算出流量和圆形水槽数学函数，32点，平方根，线性或指数线性化。这些仪表也可控制多台水泵和备用控制。该型通常用于过程，液位，压力和温度。累加器是显示到某一点计数或总计数。

Large dual-line 6-digit display is easy to read, even in sunlght

NEMA 4X, IP65 front

These panel meters are a powerful member of the Cole Parmer 1/8 DIN meter family. One of the most important features of these “New Generation” models is the availibility of 2 or 4 relays with 4-20 mA output. New dual-line display shows twice as much information than standard panel meters providing a better process control picture which allows for a better process control evaluation. The display is readable even in sunlight and all programming can be entered using the function keys on the front of the unit with the display showing two lines of information making it easier for you to setup the meter.

These panel meters accept 0 to 20mA, 4 to 20mA, 0 to 5V, 1 to 5V, and ±10V inputs. They can calculate math functions for flow and round horizontal tanks; in addition to 32-point, square root, or exponential linearization. These meters also can control several pumps and alternate control. Models are commonly used for Process, Level, Pressure, and Temperature. A Totalizer is available to show counts up to a certain point or aggregate total.
