Masterflex 77964-30 粉末涂层钢外壳，易装泵头的Masterflex I / P数字流程泵系统的0.1至650转，90到260 VAC

Masterflex 粉末涂层钢外壳，易装泵头的Masterflex I / P数字流程泵系统的0.1至650转，90到260 VAC

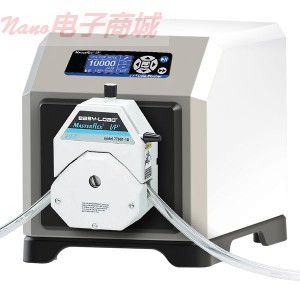

Masterflex I/P Digital Process Pump System with Powder-Coat Steel Housing and Easy-Load Pump Head; 0.1 to 650 rpm, 90 to 260 VAC

Precision digital drives offer three dispensing modes and precision low-maintenance motors

Flow range is 0.001 LPM to 8.0 LPM with included tubing

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)

Anti-drip function ensures dispense accuracy

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Remote control capabilities via watertight connection

– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V

– Pumping direction requires open collector or contact closure

– Start/stop/purge requires open collector or contact closure

– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector

Model 77964-30 features a powder coated steel housing with anodized aluminum base. Use this drive in process, manufacturing, and water-treatment applications where stainless steel is not a critical requirement.

These pump systems give you rugged performance and precise digital control. Ideal for fluid transfer, dispensing, and metering applications in laboratory, process, and industrial environments including pharmaceutical, food & beverage, dairy, chemical, manufacturing, and water treatment.

Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. To increase dispense accuracy and prevent dripping, programmable anti-drip function briefly reverses motor at end of dispense cycle. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.

The IP66, NEMA 4X rated housings are completely sealed, easy-to-clean, and resistant to commonly used cleaning and sanitizing solutions. The reversible, maintenance-free brushless motor offers a full complement of remote control capabilities allowing easy integration into your automated processes. Drives feature a membrane keypad for easy programming. Select tubing size and enter desired flow rate—drive locks in required rpm.
What's Included:
pump head, tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering
