Masterflex I / P数字处理驱动器与粉末涂层钢外壳，0.1至650转，90到260 VAC
Masterflex I/P Digital Process Drive with Powder-Coat Steel Housing; 0.1 to 650 rpm, 90 to 260 VAC
Precision digital drives offer three dispensing modes and precision low-maintenance motors
Minimum flow rate is 0.0006 LPM (0.0001 GPM); maximum flow rate is 19 LPM (5.0 GPM) with the I/P High-Performance pump head or 26 LPM (6.9 GPM) with two stacked I/P Easy-Load or Standard pump heads
Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.
Menu-driven interface lets you select one of seven languages for programming and operation
Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)
Anti-drip function ensures dispense accuracy
Reversible motor—purge tubing before or after pumping; pump fluid in either direction
Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio
Powerful motors let you stack 2 pump heads with any tubing formulation for increased flow rates and for multichannel applications
Remote control capabilities via watertight connection
– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V
– Pumping direction requires open collector or contact closure
– Start/stop/purge requires open collector or contact closure
– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector

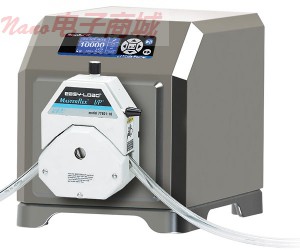

Model 77420-20 features a powder coated steel housing with anodized aluminum base. Use this drive in process, manufacturing, and water-treatment applications where stainless steel is not a critical requirement.
These full-featured drives give you rugged performance and precise digital control. Ideal for fluid transfer, dispensing, and metering applications in laboratory, process, and industrial environments including pharmaceutical, food & beverage, dairy, chemical, manufacturing, and water treatment.
Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. To increase dispense accuracy and prevent dripping, programmable anti-drip function briefly reverses motor at end of dispense cycle. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.
The IP66, NEMA 4X rated housings are completely sealed, easy-to-clean, and resistant to commonly used cleaning and sanitizing solutions. The reversible, maintenance-free brushless motor offers a full complement of remote control capabilities allowing easy integration into your automated processes. Drives feature a membrane keypad for easy programming. Select tubing size and enter desired flow rate—drive locks in required rpm.
What's Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering
| Specifications | ||
| Max flow rate (mL/min) | 26000 | |
| Min flow rate (mL/min) | 0.6 | |
| Control type | Digital Variable Speed | |
| Flow rate with I/P 26 tubing (LPM) | 0.01 to 4.0 | |
| Flow rate with I/P 26 tubing (GPM) | 0.002 to 1.1 | |
| Flow rate with I/P 70 tubing (GPM) | 0.002 to 2.1 | |
| Flow rate with I/P 88 tubing (LPM) | 0.02 to 17.0 | |
| Flow rate with I/P 82 tubing (LPM) | 0.02 to 13.0 | |
| Flow rate with I/P 70 tubing (LPM) | 0.01 to 8.0 | |
| Flow rate with I/P 88 tubing (GPM) | 0.005 to 4.5 | |
| Product Type | Masterflex I/P Drive | |
| Flow rate with I/P 82 tubing (GPM) | 0.005 to 3.5 | |
| Flow rate with I/P 89 tubing (LPM) | 0.03 to 19.0 | |
| Flow rate with I/P 73 tubing (LPM) | 0.01 to 8.0 | |
| Flow rate with I/P 73 tubing (GPM) | 0.002 to 2.1 | |
| Flow rate with I/P 89 tubing (GPM) | 0.007 to 5.0 | |
| Power (Amps) | 4.5 A at 115 VAC; 2.5 A at 230 VAC | |
| Motor (hp) | 3/8 | |
| Motor (watts) | 280 | |
| Reversible motor | Yes | |
| rpm | 0.1 to 650 | |
| Digital dispensing | Yes | |
| Dimensions (Drive) | 16.7" x 11.1" x 12.9" (42.4 x 28.2 x 32.8 cm) | |
| Speed control | ±0.1% | |
| No. of Pump heads accepted | 2 | |
| Type of Pump heads accepted | I/P Standard, I/P Easy-Load, I/P High-Performance | |
| Brand | Masterflex | |
| Model | 77420-20 | |
| Manufacturer number | 77420-20 | |
精密数字驱动器提供三种分配模式和精度低维护电机
最小流量为0.0006 LPM（0.0001 GPM），高性能I / P泵头或26 LPM（6.9 GPM）有两个叠放I / P易装或标准泵，最大流量19 LPM（5.0 GPM）头
图形液晶显示四种工作模式，连续运行，定时分配，复制分配量分配。泵的性能不断。
菜单驱动的界面，可以选择七种语言，编程及操作
免除毫升每毫升容积分配，0.001〜9999毫升;复制1至9,999点胶周期;或SEC时间每次分配周期之间的时间间隔（1到9,999秒）
防滴漏功能，确保免除准确性
在任一方向可逆电机吹扫之前或之后抽泵液管
无刷免维护电机提供±0.1％的速度控制精度1量程比6000
强大的马达让你叠2泵头任何油管制定的流速增加，多通道应用
远程控制功能，通过水密连接
- 可扩展速度控制输入0至20 mA，4至20 mA，0〜10 V
- 抽水方向需要集电极开路或触点闭合
- 启动/停止/清除需要集电极开路或触点闭合
- 可扩展的转速计输出0至20 mA，4至20 mA，0〜10 V，集电极开路
型号77420-20设有一个粉末涂层钢板外壳，阳极氧化铝基地。使用该驱动器的过程中，制造和水处理应用中，不锈钢的是不是一个关键的要求。
这些全功能的驱动器给你坚固的性能和精确的数字控制。流体输送，分配，在实验室和计量应用过程中，包括制药，食品饮料，乳品，化工，制造，水处理和工业环境的理想选择。精密驱动器具有可编程分配间隔，可以让你设置之间的延迟免除方便，自动点胶周期按时间或按体积。为了提高分配的准确性和防止滴水，可编程防滴漏功能简要电机反转点胶周期结束。精确的PWM速度控制（±0.1％）的精度和效率最大化，而 无刷电机，为您提供安静，免维护可靠性。程序校准，确保分配和显示精度驱动器存储校准值每管大小。计划器通过简单的键盘膜，键盘锁定/解锁功能保护设置，NEMA 4X，IP66额定外壳是完全密封，易清洁，耐常用的清洗和消毒液。可逆的，免维护的无刷电机提供了完整的远程控制功能，方便地集成到自动化流程。驱动器配有键盘膜，易于编程。选择管的大小，然后输入所需的流量驱动器锁在所需的转速。包括： 6英尺（1.8米）线与IEC 320/CEE22插座。这些模型是特定国家的插头/电源线出货，订货时请注明最终目的地
| 产品规格 | ||
| 最大流量（毫升/分钟） | 26000 | |
| 最小流量（毫升/分钟） | 0.6 | |
| 控制类型 | 数字变频调速 | |
| 流量与I / P 26管（LPM） | 0.01〜4.0 | |
| 流量与I / P 26管（GPM） | 0.002至1.1 | |
| 流量与I / P 70管（GPM） | 0.002至2.1 | |
| 流量与I / P 88管（LPM） | 0.02至17.0 | |
| 流量与I / P 82管（LPM） | 0.02〜13.0 | |
| 流量与I / P 70管（LPM） | 0.01至8.0 | |
| 流量与I / P 88管（GPM） | 0.005至4.5 | |
| 产品类型 | 的Masterflex I / P驱动器 | |
| 流量与I / P 82管（GPM） | 0.005至3.5 | |
| 流量与I / P 89管（LPM） | 0.03至19.0 | |
| 流量与I / P 73管（LPM） | 0.01至8.0 | |
| 流量与I / P 73管（GPM） | 0.002至2.1 | |
| 流量与I / P 89管（GPM） | 0.007至5.0 | |
| 功率（安培） | 在115 VAC 4.5 2.5在230 VAC | |
| 马力（HP） | 3/8 | |
| 电机功率（瓦） | 280 | |
| 电机的正反转 | 是 | |
| 转 | 0.1至650 | |
| 数字分配 | 是 | |
| 尺寸（驱动器） | 16.7“×11.1”×12.9“ （42.4所述28.2所述32.8厘米） | |
| 速度控制 | ±0.1％ | |
| 接受泵头号 | 2 | |
| 接受泵头类型 | I / P标准，I / P易装，I / P高效 | |
| 牌 | 的Masterflex | |
| 模型 | 77420-20 | |
| 制造商数量 | 77420-20 | |
