Masterflex 77096-05液感紧急切断系统控制器，230伏

Masterflex 液感紧急切断系统控制器，230伏

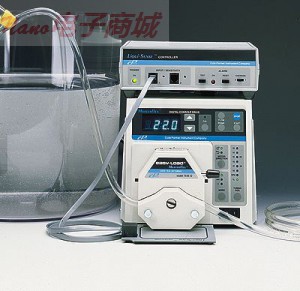

Controller for Masterflex Liqui-Sense emergency cut-off system, 230V.

Monitor pumps and fluid systems for leaks, flow, and fluid level—24 hours a day

Shuts down pump or process automatically—eliminating downtime, system damage, and fluid loss

Customize to your specific application needs using dual input and output channels

Controller will shut off the main pump and switch on a backup pump when a sensor detects a problem.

Audible and visible alarms alert you when problems are detected; a remote jack lets you connect an external alarm.

Select from three types of sensors: liquid detector pad senses leaks; out-of-liquid sensor detects air in tubing; float-switch level sensors detect level changes in tanks and vessels.

Controller has connections for two sensors each with their own sensitivity adjustment (controller provides 12 VDC, 20 mA per channel for powering sensors). Monitor two points in a single system or two independent systems.

Purchase optional environmental monitor (model 08330-20 at right) to have your system call your phone or pager in the event of problems.

Model 77096-05 has 230 VAC main and backup pump connections with IEC 320F plug receptacles; 6.3 A, 50/60 Hz. Includes a 6-ft (1.8 m) line cord with IEC320/CEE22 socket; controller is shipped with cord/plug set specific to country of destination.

The complete Liqui-Sense^® system consists of the controller, a sensor (choose from those listed at right or supply your own), and an environmental monitor (optional). See the "For a Complete System..." box at right.Optional extension cables 77095-03 and 77095-04 allow you to position the sensors up to 15 feet (4.5 m) from the controller (see "Accessories" at right).
