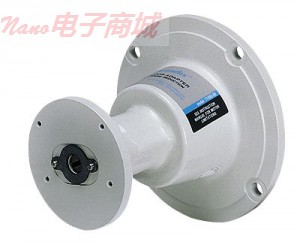

Masterflex 77495-00 L / S NEMA 56C型泵头适配器;齿轮比3.7:1适配器; 2220最大电机转速

Masterflex L / S NEMA 56C型泵头适配器;齿轮比3.7:1适配器; 2220最大电机转速

L/S NEMA type 56C pump head adapter; 3.7:1 adapter gear ratio; 2220 max motor rpm.

3.7:1适配器：流量：0.06至3400毫升/分钟; 18.3:1适配器：流量0.06至1100毫升/分钟。流量取决于电机转速，适配器的齿轮比和泵管尺寸。

使用一个或两个L/S泵头。泵可以在相同或不同流速下同时出现2种不同流体。

IP56额定铸铝适配器具有内置的齿轮箱安装硬件。适配器保持完整的电机功率IP56。

适配器接受八个不同的泵头类型：标准，易装®易装®II，快速安装®，高性能，插装，聚四氟乙烯管，聚四氟乙烯隔膜。

将适配器安装MASTERFLEX L/S泵头到56C帧或IEC 72/ISO 63 B5法兰电机

使用下面的公式来计算流量率不超过600转泵头速度：

流量=（电机转速/适配器的齿轮比）×每转流

3.7:1 adapter: flow: 0.06 to 3400 mL/min; 18.3:1 adapter: flow 0.06 to 1100 mL/min. Flow rate depends on motor rpm, adapter gear ratio, and tubing size.

Use one or two L/S pump heads. Pump two different fluids simultaneously at the same or at different flow rates.

IP56 rated cast-aluminum adapters feature built-in gear box—mounting hardware included. Adapters maintain integrity of your motor rating up to IP56.

Adapters accept eight different pump head types: Standard, EASY-LOAD®, EASY-LOAD® II, QUICK LOAD®, High-Performance, Cartridge, PTFE-Tubing, and PTFE-Diaphragm.

Use adapters to mount MASTERFLEX L/S pump heads to a 56C frame or IEC 72/ISO 63 with B5 flange motor.

Use the following formula to calculate flow rate— do not exceed 600 rpm pump head speed:Flow rate = (Motor rpm/adapter gear ratio) x flow per revolution
