Masterflex 77250-82 L / S高性能泵ATEX区域2头; SS转子

Masterflex L / S高性能泵ATEX区域2头; SS转子

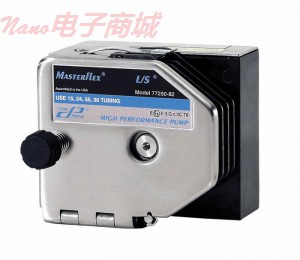

Masterflex L/S High-Performance pump head for ATEX Zone 2; SS rotor

ATEX Zone 2 认证

L/S®是最新一代高流率，高压力泵头

吸水高度更好，粘性流体输送，泵管寿命长，压力高达150磅，使用L / S高压泵管。

泵头设计允许油管插进/出，同侧泵头安装适合您的空间和应用需求。

轧辊，轴承，转子板，转子轴是由不锈钢（SS）制成的;阻断架是聚苯硫醚（PPS）。SS和PPS具有优异的耐化学性; SS还具有高耐用性和使用寿命长等特点。

兼容所有的L / S驱动器接受两个或两个以上的泵头。咨询驱动器的规格，L / S高性能泵头不堆叠。

接受高性能精密管材尺寸L/S® 15，L/S® 24，L/S® 35，L/S® 36

还接受L / S高压油管尺寸L/S® 14HP，L/S® 16HP，L/S® 15HP， L/S® 16HP

包括：

安装硬件和15”（38厘米）长的L/S®  35聚乙烯®E-LFL泵管。

Approved to ATEX Zone 2

The highest flow rate and the highest pressure generation of any L/S? pump head

Offers better suction lift, viscous fluid transfer, and long tubing life—pump at pressures up to 150 psi using L/S high-pressure pump tubing.

Pump head design allows tubing to enter and exit the same side of the pump head—mount the pump head to best suit your space and application needs.

Rollers, bearings, rotor plates, and rotor shaft are made of stainless steel (SS); occlusion bed is made from polyphenylene sulfide (PPS). SS and PPS have excellent chemical resistance; SS also offers high durability and long service life.

Compatible with all L/S drives that accept two or more pump heads. Consult drive specifications; the L/S High-Performance pump head is not stackable.

Accepts high-performance precision tubing sizes L/S® 15, L/S® 24, L/S® 35, and L/S® 36

Also accepts L/S high-pressure tubing sizes L/S® 14HP, L/S® 16HP, L/S®  15HP, L/S® 16HP

What's Included:

mounting hardware and a 15" (38-cm) length of L/S® 35 Tygon®  E-LFL pump tubing.
