Masterflex 77202-60 L / S双通道易装II泵头，SS转子

Masterflex L / S双通道易装II泵头，SS转子

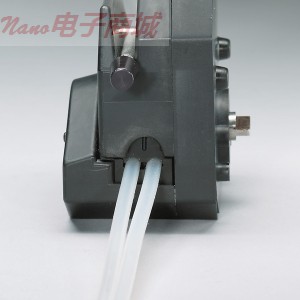

Masterflex L/S two-channel Easy-Load II pump head, SS rotor.

双通道泵头无需再叠加泵头，自动安全架住管子，无需手动调节

双通道泵头可让泵两个同步的流动（适当保留，需要在每个通道中使用大小相同管）

四辊转子可提高性能和机械稳定性，同时减少脉动。

改进闭塞床几何延长油管的使用寿命。

聚苯硫醚（PPS）外壳采用不锈钢（SS）或冷轧钢（CRS）转子选择经济型CRS具有耐用性和耐化学性。

精密泵管每泵头接受油管尺寸L / S ® 13，L / S ® 14，L / S ® 16，L / S ® 25。实现流速为0.06至1000毫升/分钟（1〜600转）。

包括：单通道安装硬件和15"（38厘米）硅胶泵管长度，两，三，四通道安装硬件分别可用。叠加泵头L/S ®由您的驱动器指定。

最新信息

使用单个或多个通道，您无需从您的驱动器上去除易装卸泵头就可改变每个通道的管子

Two-channel heads lets you pump two channels without stacking heads—automatic retention holds tubing securely in place with no manual adjustment

Two-channel head lets you pump two synchronous flow channels (proper retention requires the use of the same size tubing in each channel)

Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.

Improved occlusion bed geometry lengthens tubing life.

Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.

Each pump head for precision pump tubing accepts tubing sizes L/S® 13, L/S® 14, L/S® 16, and L/S®25. Achieve flow rates of 0.06 to 1000 mL/min (1 to 600 rpm).

What's included: single-head mounting hardware and a 15" (38-cm) length of silicone pump tubing. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately under "Accessories" at right.

Hot Tips:

With single or multiple channels, you can change tubing in each channel without removing the EASY-LOAD II pump head(s) from your drive.
