Masterflex 77200-62 L / S易装II泵头为高性能精密管材，固定闭塞，SS转子

Masterflex L / S易装II泵头为高性能精密管材，固定闭塞，SS转子

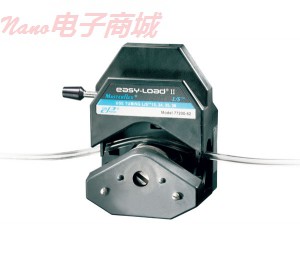

Masterflex L/S Easy-Load II pump head for high-performance precision tubing, fixed occlusion, SS rotor.

自动保留持有管安全，无需手动调整只需安装油管，启动泵

四辊转子可以提高性能和机械稳定性,同时减少压力脉动。

改进闭塞床几何延长油管的使用寿命。

聚苯硫醚（PPS）外壳采用不锈钢（SS）或冷轧钢（CRS）转子CRS转子外壳更经济，而SS提供了更强的耐久性和耐化学性。

型号77201-62可调闭塞让您选择松动闭塞管延长寿命或高压增强闭塞

精密泵管每个泵头接受管尺寸L / S ®15，L / S ® 24，L / S ® 35，L / S ® 36。实现流速为1.7〜2900毫升/分钟（1〜600转）。

这些泵头接受四种高性能精密管材尺寸。高性能精密管材比高精度管管壁厚，可以更好的产生压力，对粘性液体更大吸力。

包含：单通道安装硬件和15“（38厘米）长的硅胶泵管。

最新信息：使用单个或多个通道，您无需从您的驱动器上去除易装卸泵头就可改变每个通道的管子。

Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump

Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.

Improved occlusion bed geometry lengthens tubing life.

Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.

Model 77201-62 with adjustable occlusion gives you the option of loosening occlusion for longer tubing life or increasing occlusion for higher pressure.

Each pump head for high-performance precision pump tubing accepts tubing sizes L/S® 15, L/S® 24, L/S®35, and L/S® 36. Achieve flow rates of 1.7 to 2900 mL/min (1 to 600 rpm).

These pump heads accept the four high-performance precision tubing sizes. High-performance precision tubing has a thicker wall than precision tubing enabling better pressure generation, greater suction lift, and greater ability to pump viscous fluids.

What's included: single-channel mounting hardware and a 15'' (38-cm) length of silicone pump tubing. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately.

Hot Tips:

With single or multiple channels, you can change tubing in each channel without removing the EASY-LOAD II pump head(s) from your drive.
