Masterflex 07518-00 精密管材Masterflex L / S易装泵头PSF住房，CRS转子

Masterflex 精密管材的Masterflex L / S易装泵头PSF住房，CRS转子

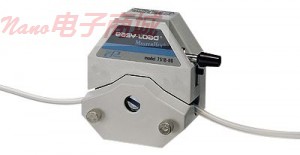

Masterflex L/S Easy-Load pump head for precision tubing; PSF housing, CRS rotor.

非常适于快速油管变化，减少维修

专利设计和可调油管保留，允许多个尺寸的管道更换管路不需要去除驱动器的泵头。

聚砜（PSF）外壳采用不锈钢（SS）或冷轧钢（CRS）转子选择CRS更经济，或选择SS更耐用，耐化学性。

聚苯硫醚（PPS）07518-62型壳体和SS转子提供增强的耐化学性。

每个泵头用于高性能精密的​​泵管接受油管尺寸L/S ®15，L/S ® 24。实现流量速率为1.7〜1700毫升/分钟（1〜600转）。

这些泵头易装卸，泵头精密管材相同，但接受两个高性能精密管材尺寸。高性能精密管材比高精度管壁厚，这产生更好的压力，吸水度高，管寿命更长，抽吸粘性液体能力更强。

包括：单通道安装硬件和15"（38厘米）硅胶泵管长度，两，三，四通道安装硬件分别可用。叠加泵头L/S ®由您的驱动器指定。

最新信息

使用单个或多个通道，您无需从您的驱动器上去除易装卸泵头就可改变每个通道的管子

Ideal for fast tubing changes and reduced maintenance

Patented design and adjustable tubing retention allow for multiple tubing sizes—change tubing without removing head from drive.

Polysulfone (PSF) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.

Model 07518-62 with polyphenylene sulfide (PPS) housing and SS rotor offers enhanced chemical resistance.

Each pump head for high-performance precision pump tubing accepts tubing sizes L/S® 15, and L/S® 24. Achieve flow rates of 1.7 to 1700 mL/min (1 to 600 rpm).

These pump heads are identical to the Easy-Load pump heads for precision tubing, but accept two of our high-performance precision tubing sizes. High-performance precision tubing has a thicker wall than precision tubing—this enables better pressure generation, suction lift, longer tubing life, and the ability to pump viscous fluids.

What's included: single-channel mounting hardware and a 15" (38-cm) length of silicone pump tubing.

Two-, three-, and four-channel mounting hardware is available separately. Stack pump heads up to the specified limits of your L/S® drive.

Hot Tips:

With single or multiple channels, you can change tubing in each channel without removing the EASY-LOAD pump head(s) from your drive!
