建立在用户舒适基础上的精密工程,坚固建筑
万能刀架可调高低叶片
半自动切片机可以在手动控制切片厚度的同时进行自动切片
嵌壁式工作台,对刀片,刷子和辅助工具是方便的
KYDEX 外壳是二甲苯,抗划伤,耐凹痕
SHUR/Cut电动切片机结合最新的电子技术,自动推进或返回标本,同时在操作员选择修边和厚度模式之间转换,操作员可手动切片。所有切片机包括一个可拆卸的磁废料托盘,便于清洗。
机械化的标本支臂具有出色的稳定性,保证切片的精度。SHUR/Cut 4500全自动缩回式切片机提供高精度,高效率,精确分割适用于高产出实验室。切片机可连续单冲程机械化切割,也可手动操作。通过脚踏,驱动电机,进一步释放操作员的双手。易于使用的紧急停止按钮,停止电机驱动。独特的样品位置记忆功能。只需按一个按钮,支臂会自动返回到原始位置。
型号48577-04也包括脚踏开关。
Precise engineering and solid construction is built with user comfort in mind
Universal blade holder accepts high and low profile blades
Semi-automated toggle function for section and thickness trimming
Recessed staging area is convenient for blades, brushes and ancillary tools
Kydex® housing is xylene-, scratch-, and dent-resistant

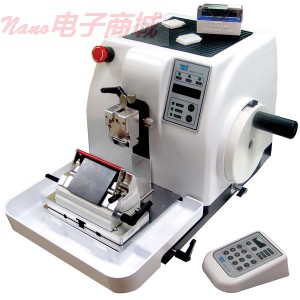

SHUR/Cut motorized microtomes incorporate the latest electronic technology to automate specimen advance or return and instantaneous switching between operator-selectable trimming and sectioning mode thicknesses while allowing the operator to focus on hand sectioning. All microtomes include a removable magnetic waste tray for easy cleaning. Exceptional stability in the motorized specimen arm ensures accuracy when working with your samples.SHUR/Cut 4500 Fully Automatic Retracting Microtome is best for high throughput labs and engineered to provide superior accuracy, efficiency and precise sectioning. This microtome allows for continuous and single-stroke motorized cutting modes but operates in manual modes for specimens requiring a special touch.Repetitive hand motion functions are customizable and stored within the handpad controller for technician comfort and hands-free operation.
Choose to actuate the motor via the included foot pedal— further frees up operator’s hands so they may guide and manipulate ribbons with ease.A readily accessible emergency stop button stops the motor drive when pushed.Unique specimen position-memory feature remembers a specimen’s extended position when removing a block to chill; the arm automatically returns to the original position with just a push of a button.
Model 48577-04 also includes a foot pedal.
产品规格 |
|
产品类型 |
切片机 |
描述 |
自动缩回 |
第计数器 |
是 |
切片/剪裁设置 |
0.0至2.0微米,0.5微米的增量 |
水平样本向前 |
20±1毫米的步进电机 |
垂直切割冲程 |
70±1毫米 |
自动回缩 |
是的,可以将其关闭 |
试样夹持 |
快速释放型标准活检磁带,前进后退操作杆。可选的快速释放型标准活检磁带,左到右操作杆可选的“C”型对象持有较大的块,最大尺寸(40×50)毫米,螺杆TY |
试样取向 |
X / Y轴:8°,Z轴:360° |
标本臂锁定 |
手轮锁定标本在最上面的位置,二级360°锁定机制 |
电动进样 |
单速度和回率:730微米/秒 |
电动切割速度 |
变速前进和回报率:100微米至400微米/秒/秒 |
电动操作 |
Handpad控制手轮30和120之间的转速度,连续和单冲程工作模式 |
脚踏控制 |
对于单中风和连续运行,停止动作(单水龙头) |
符合CE认证 |
是 |
尺寸 |
13×17×22厘米(宽x高x深) |
外形尺寸(W) |
32 |
尺寸(“H) |
42 |
尺寸(“D) |
55 |
电源(VAC) |
100到240 |
功率(赫兹) |
50/60 |
生产编号 |
SC4500 |
Specifications |
|
Product Type |
Microtome |
Description |
Automatic retracting |
Section counter |
Yes |
Sectioning/trimming settings |
0.0 to 2.0 µm in 0.5 µm increments |
Horizontal specimen advance |
|
Vertical cutting stroke |
|
Automatic retraction |
Yes, can be turned off |
Specimen clamp |
Quick-release type for standard biopsy cassettes, forward backward
operating lever. Optional quick-release type for standard biopsy cassettes,
left to right operating lever Optional “C” type object holder for larger
blocks, max size (40 x 50) mm, screw ty |
Specimen orientation |
X/Y axes: 8°, Z axis: 360° |
Specimen arm locking |
Handwheel locking of specimen in uppermost position; secondary 360°
locking mechanism |
Motorized specimen feed |
Single speed and return: 730 µm/sec |
Motorized cutting speed |
Variable speed forward and return: 100 µm/sec to 400 µm/sec |
Motorized operation |
Handpad control of hand-wheel speed between 30 and 120 rpm, with
continuous and single stroke operating modes |
Foot pedal control |
For single stroke and continuous operation, stop action (single tap) |
CE Compliance |
Yes |
Dimensions |
13 x 17 x |
Dimensions (" W) |
32 |
Dimensions (" H) |
42 |
Dimensions (" D) |
55 |
Power (VAC) |
100 to 240 |
Power (Hz) |
50/60 |
Manufacturer number |
SC4500 |
|
|
|
| ||||||||||||||||||||||||
|
|
|
