45-0102 钳电极

45-0102 钳电极

BTX卡尺电极是体样式可重复使用的电极用于各种各样的应用程序，卡钳电极有两种型号，每个模型包括一个卡钳和一对端板的。模型0289438顷用于较小的不寻常的事物具有较小的表面积，而模型0289440被用于觇标稍大的表面积。该卡尺电极的端板可通过使用墨辊装在卡尺进行调整。卡钳电极可以用温和的洗涤剂和消毒用乙醇或环氧乙烷进行清洁。适当维护卡尺电极具有无限的生命，并与最BTX电穿孔系统兼容。

卡钳电极是由不锈钢制成，并且可以被用于许多电的应用，包括药物和基因递送。电极跨越目标区域以下注射感兴趣的分子和电穿孔脉冲正在使用的BTX电穿孔系统递送。电场由卡尺电极引入导致暂时性的孔，以在组织中的细胞，从而使分子的摄取到细胞中。

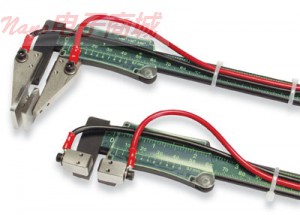

The BTX Caliper Electrodes are in vivo style re-usable electrodes that are used for a variety of applications. Caliper Electrodes come in two models, with each model consisting of a caliper and a pair of end plates. Model 0289438 are used for smaller animals with a smaller surface area, while model 0289440 is used to target slightly larger surface areas. The end plates of the Caliper Electrode may be adjusted by using the black roller mounted on the caliper. Caliper Electrodes may be cleaned with a mild detergent and sterilized with ethanol or ethylene oxide. Properly maintained Caliper Electrodes have an unlimited life, and are compatible with most BTX Electroporation Systems.

Caliper Electrodes are made of stainless steel and may be used for many electroporation applications, including drug and gene delivery. The electrodes span the target area following injection of the molecule of interest, and electroporation pulses are delivered using a BTX Electroporation System. The electric field introduced by the Caliper Electrodes cause transient pores to form in the cells of the tissue, allowing uptake of the molecules into the cells.
