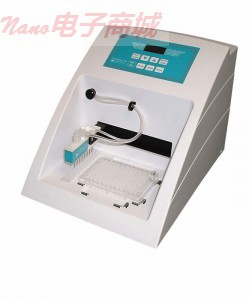

Multiwash III 12端口同轴集成块洗板

Multiwash III 12端口同轴集成块洗板

只需按一个按钮，按需漂洗功能完善设备清洁

快速连接管接头允许在单位时间内完全运作

处理全方位的分析类型，从最轻柔洗净到最激进的ELISA

适合用于执行各种程序，包括实验室 - 凝集试验、细胞毒性试验、ELISA，EIA，FIA和LIA测试。洗衣机拥有易于清洗的程序例程，臀部洗净，扫地横向吸出，只能免除和分泌物功能，并溢出清洗的持续配药，同时吸出进行彻底的清洗顶部。通过编程和存储程序，可以七种不同模式之间的一键式切换。

垫圈在不到两分钟进行在一个完整的96孔板300微升三周期洗涤，洗衣机是可以运行多达10洗涤周期，可以控制分配压力和浸泡时间。该洗衣机还设有一个浮动歧管，调整以匹配每块板，并允许洗衣机执行特殊的测试程序。额外抽吸调整为水平和垂直两个针位置可以存储在单独的程序。

水平和垂直独立调整很好地被容纳任何形状，洗衣机具有洗涤和漂洗的各2升水库容量。润湿的材料包括玻璃，尼龙，PTFE®，不锈钢，聚丙烯，Tygon®海豹，Delrin®聚，聚乙烯和Santoprene。措施11'W X81/2'H X145'D。各单位均已通过认证与CAS std c 22.2 1010.1。

包含的内容：

歧管（除13054-34），滑连接器，水库套件，保险丝，冲洗条，防尘罩，操作手册，快速入门指南和两根电源线（美国标准和欧洲）。单独订购额外的歧管。

技术指标

产品类型                  板垫圈

全板加工                  120秒

浸泡时间                  0至999秒

歧管型                    同轴

洗涤周期                  10

精度                      +/-300微升3％

品牌                      Multiwash

出厂编号                  820-05（MULTIWASH3）

Multiwash III Plate Washer with 12-Port Coaxial Manifold

Rinse-on-demand feature for complete system cleaning at the touch of a button

Quick-connect fittings allow unit to be fully operational in minutes

Can handle full range of assay types from the most gentle wash to the most aggressive ELISA

Ideal for labs performing a variety of routines including -- agglutination tests; cytotoxicity tests; and ELISA, EIA, FIA, and LIA tests. Washer features easy-to-program wash routines, bottom washing, sweeping crosswise aspiration, dispense only and aspirate only functions, and overflow washing for continual dispensing while aspirating off the top for a thorough wash. By programming and storing routines, you can switch between seven different modes at the touch of a button.

The washer performs a 300-µL three-cycle wash on a full 96-well plate in less than two minutes. Washer is can run up to ten wash cycles. You control the dispense pressure and soak time. The washer also features a floating manifold that adjusts to match each plate and allows the washer to perform special test procedures. Extra aspiration adjustment for both horizontal and vertical needle positions can be stored in individual programs.

Independent adjustments of horizontal and vertical allow any shape well to be accommodated. Washer has a wash and rinse reservoir volume of two liters each. Wetted materials include glass, nylon, PTFE^®, stainless steel, polypropylene, Tygon^®, Delrin^®, polyethylene, and Santoprene^®. Measures 11'W x 81/2'H x 145'D. All units are also certified with CAN/CAS std c 22.2 No. 1010.1.

What's Included:
manifold (except 13054-34); slip connectors; reservoir kit; fuse; rinse strips; dust cover; operation manual; quick-start guide, and two power cords (U.S. standard and European). Order additional manifolds separately.

Specifications
Product Type	Plate Washers
Full plate processing time	120 seconds
Soak time	0 to 999 seconds
manifold type	Coaxial
Wash cycles	10
Accuracy	+/- 3% at 300 uL
Brand	Multiwash
Manufacturer number	820-05(MULTIWASH3)

产品规格
产品类型		洗板机
全板加工时间		120 秒
浸泡时间		0 to 999 秒
歧管型		同轴
洗周期		10
精度		+/- 3% at 300 uL
品牌		Multiwash
型号		820-05(MULTIWASH3)
