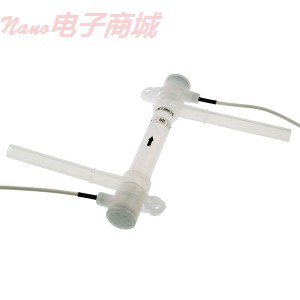

Levitronix 100-90623超高纯度液体超声波流量计，Z形管; 0至80 LPM，1“外径管连接

Levitronix 100-90623超高纯度液体超声波流量计，Z形管; 0至80 LPM，1“外径管连接

由于DSP技术可提高透明圆形罩的强固性

由于无创测量没有污染

Z或U型流动模式的选择

设计用在制药和半导体工业的高纯度工艺流量测量，流动是由安装在所述流体流的测量路径的两端两个压电换能器，产生和接收超声波的感测。波会在流动（与流波）的方向上被加速，并在波逆（反流波）的流动方向的速度将变慢。两个波由信号转换器进行处理。两个波的发射时间差正比于流体的速度。

LEVIFLOW流量计的标准配置包括有两个传感器和一个转换器，数字信号处理器（DSP）和4位数字显示流管的。单通道流量转换器是DIN导轨安装，并设有报警ABD累计。各种信号（模拟，数字输入及数字输出）提供，并且可与PC软件进行配置。两线RS485总线允许多个流量计的阵列。

包含的内容：流量传感器有两个传感器和流量转换器。注：延长电缆需另行购买

Ultrasonic Flowmeters for Ultra High Purity Liquids, Z-Shaped Tube; 0 to 80 LPM, 1" OD Tube Connection

Improved bubble robustness due to DSP technology

No contamination due to noninvasive measurement

Choice of Z or U shaped flow patterns

Designed for flow measurement in high-purity processes in the pharmaceutical and semiconductor industry, flow is sensed by two piezoelectric transducers mounted at both ends of the measuring path of the fluid stream, generating and receiving an ultrasonic wave. The wave going in direction of the flow (with-stream wave) is accelerated and the wave going against (against-stream wave) the flow direction is slowed down. The two waves are processed by a signal converter. The difference of the transmit time of both waves is proportional to the velocity of the fluid.

The standard configuration of the LEVIFLOW^™ flowmeters consists of a flowtube with two sensor and a converter with digital signal processor (DSP) and 4-digit display. The single-channel flow converter is DIN-rail mountable and features an alarm abd totalization. Various signals (analog, digital input and digital output) are provided and can be configured with PC software. A two wire RS 485 bus allows arrays of multiple flowmeters.
What's Included:
Flowtube with two sensors and flow converter. Note: Extension cables are required and sold separately below.
