开核设计以确保其精确性，其线性输出的准确性为量程的±1％

传感器包含一个开核用小磁铁的带有四个叶片的转子。当它们旋转，磁铁通过传感器内部的线圈。该换能器产生一个线性的频

率与流速成比例的电流输出。信号传播的范围最大到200英尺，开核设计，可有效消除气蚀，可测量1到20英尺/秒的流速。可关

闭和固定的桨轮设计可在量程的速度范围内产生气泡，从而产生非线性的，不可重复的信号。传感器材料能抵抗大多数化学品

的腐蚀。所有型号都具有PVDF转子和Viton ® O型圈，以及包括一个25英尺的连接电缆。流量传感器转子-X兼容所有该品牌的产

品线，电池和传感器供电的流量计，蓄电池以及控制器。配套安装配件需要单独订购。其中内容包括： 25英尺的连接电缆

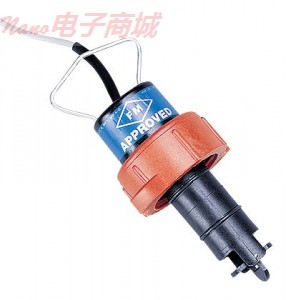

P51530-Vo:Rotor-X Flo-Sensr Paddlewhwwl Plastic

Open-core design ensures accurate, linear output to ±1%

Sensors contain an open-core rotor with a small magnet in each of the four blades. As they rotate, the magnets

pass a coil in the sensor. The transducer generates a linear frequency output that is proportional to the flow

velocity. This signal travels up to 200 feet without amplification.

Open-core design eliminates cavitation at flow velocities from 1 to 20 ft/second. Closed or solid paddle-wheel

designs create air bubbles at these velocities, causing a nonlinear, nonrepeatable signal.

Sensor materials resist most chemicals. All models have PVDF rotor and VITON® O-ring; and include a 25-ft

connecting cable.

ROTOR-X flow sensors are compatible with all of our line-, battery-, and sensor-powered flowmeters,

accumulators, and controllers. Mount in any type of pipe using an installation fitting—order separately.

What's Included:

25-ft connecting cable
