GF + SIGNET单通道变送器，现场安装

通过可扩展的模块可对发射机进行个性化的定制，友好的用户界面，可通过“拨号式的”背光LED显示器显示仪器的各功能标签和图形显示的相关设置，使用方法接近传统仪器

通过可选的插件模块可以很容易地扩展仪器功能

这些多功能单通道发射机的设计能够帮助您量身定制您根据具体的需求架设系统。发射机自带的大型LED显示器可显示主要与次要测量结果。通过预设值可对仪器进行简单快速的编程。例如自

定义标签，最小/最大拨号设置，单位/进制单位的设置等。两个面板和现场安装模块都在12至32 VCD电源上运行，并且可以与相兼容的传感器串接在同一回路，

增加了灵活性，通过附加模块，可以搭建一个理想的控制中心。继电器模块56560-15（仅适用于面板安装变送器）设有两个可编程干触点继电器的滞后和时间延迟。PC COMM模块56560-19让您

轻松地将发射机的相关设置存储在计算机中，以备将来安装和使用你的发射机。可选的H COMM模块56560-17可以与任何HART ®的设备进行通讯和远程校准，设置电流为4至20 mA。，使用可选

参数模块的应用程序可对仪器的测量功能进行拓展，包括pH值，ORP，温度，流量，压力等数据的测量和水平控制功能。联系我们的技术支持以便了解更多细节。

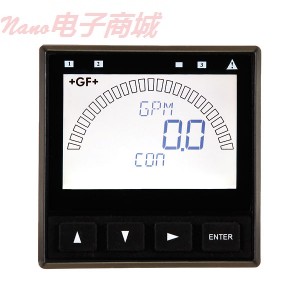

GF+ Signet Single-Channel Transmitter, Field Mount

Add-on modules help you create your own customized transmitter

Large, backlit LCD with ''Dial-type" digital bar graph

Customizable label and bar graph settings

User-friendly interface consistent with legacy instruments

Optional plug-in modules easily expand capabilities

These versatile, single-channel transmitters are designed to help you tailor a system to your exact needs. Transmitters feature a large LCD with digital bar graph as

well as displays of the main and secondary measurements. Preset values offer quick and easy programming. Or customize your unit for labeling, min/max dial settings,

and unit/decimal measurement options. Both panel- and field-mount models run on 12 to 32 VCD power and can be looped with compatible sensors.

For added flexibility, add-on modules let you create the ideal control center. The relay module 56560-15 (for panel mount transmitter only) features two programmable

dry-contact relays for hysteresis and time delay. PC COMM module 56560-19 lets you easily configure your transmitter from your computer—save settings and use for

future installations. Choose the H COMM module 56560-17 to communicate with any HART®-enabled device and remotely adjust 4 to 20 mA settings.

Expand your measurement capabilities using the optional parameter modules for applications including pH, ORP, temperature, flow, pressure, and level control. Contact

our Application Specialists for details.
