德国Kobold MIK 5NAUER C34P磁感应流量计1 1/4“PP配件; 4到80 GPM; 4至20 mA和一个PNP开关输出

德国Kobold MIK 5NAUER C34P磁感应流量计1 1/4“PP配件; 4到80 GPM; 4至20 mA和一个PNP开关输出

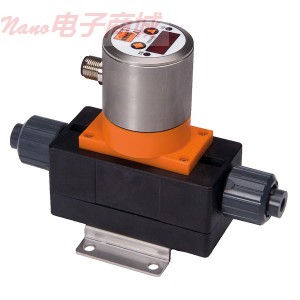

Magneto-inductive Flowmeter With 1 1/4" PP Fittings; 4 To 80 GPM; 4 To 20 mA And One Pnp Switch Output

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton^® PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.

These solid-state meters have no moving parts to wear out, making them very reliable. Viscous and dirty liquids are measured with no accuracy degredation. The wetted materials for the flow body are Ryton PPS with 316L stainless steel electrodes. Choose from meters with 4 to 20 mA output or with a display and 4 to 20 mA output with one PNP switch. Accessory 34900-90 is a 4-pin, 6-ft micro-DC connector cable for the 4 to 20 mA output models. Accessory 34900-92 is a 5-pin, 6-ft micro-DC connector cable for models with display and output.

Other configurations such as body material, fitting type, electronics, and totalizer are available. Contact a Davis Application Specialist for details.



Specifications
Product Type		Magnetic Flowmeters
Description		Magnetic Flow Sensor
Accuracy		±2.0% of full scale
Material (fitting)		PVC
Max operating temperature (º F)		176
Max operating temperature (º C)		80
Max pressure		145 psi
CE Compliance		Yes
Operating temperature		32 to 176°F (0 to 80°C)
Electrical connections		5-pin, 6-ft micro-DC connector
Brand		Kobold
Model		MIK-5NAUER C34P
Power		24 VDC
Manufacturer number		MIK-5NAUER C34P

对于使用导电性的液体，酸，焦散各种各样的

磁感应技术，没有移动部件

的Ryton ^® PPS体不锈钢焊条

PVC或PP管件

MIK Kobald系列磁感应流量计是测量导电液体的流量在应用中的可靠性和低电磁流量计压力损失需要的完美解决方案。

这些流量计测量流量使用磁感应原理。根据法拉第电磁感应定律，产生感应电流的导体，因为它的动作通过磁场。感生电流的量成正比的速度运动的导体。作为导体的导电性液体，通过仪表和身体。在表体中包含的一组电磁线圈产生磁场。安装在表体中的电极收集，其大小是与流量成正比的电流。

这些固态米没有移动部件磨损，使他们非常可靠。粘性和肮脏的液体测量没有防治精度退化。流体内的湿物料聚苯硫醚PPS 316L不锈钢焊条。选择从米4至20 mA输出或一个PNP开关显示，4至20 mA输出。附件34900-90是一个4针，6英尺微型DC连接器电缆为4至20 mA输出模式。附件34900-92是一个6英尺5针，微型DC连接器电缆与显示和输出的机型。

其他配置，如体材料，装配型，电子和累加器。联系戴维斯应用专家的详细信息。



产品规格
产品类型		电磁流量计
描述		电磁流量传感器
准确性		满量程的±2.0％
材料（配件）		PVC
最高工作温度（ºF）		176
最高工作温度（°C）		80
最大压力		145磅
符合CE认证		是
工作温度		32到176°F（0至80℃）
电气连接		6英尺5针，微型DC连接器
牌		狗头人
模型		MIK 5NAUER C34P
功率		24 VDC
制造商数量		MIK 5NAUER C34P
