美国Gilmont GF-9160屏蔽流量计/阀门

美国Gilmont GF-9160屏蔽流量计/阀门

巧妙的设计使得该仪表在实验室中得到了广泛的应用

模块化的组件使得流量仪的测量范围非常灵活

各种多个终端连接，以适应工艺要求

非屏蔽流量计在低压条件下应用良好。这种传感器端直接连接到对应内径的流量管的底部。玻璃锥关节是一种包含浮点的备用连接选项（联系我们咨询玻璃锥关节相关问题）屏蔽流量计更适合高压力环境下的应用而且安装时需要面板安装流量计的辅助。末端衬套双连接能力配备有两种连接方式管道或螺纹;下面列出管道与螺纹相互之间的匹配情况。屏蔽流量计通过一个20匝微米阀进行流量监测与精确控制。阀门可调节最大流量（半对数）从0.1到100％，并从0.3到60％提供recise最大流量调节。联系我们的销售人员可以咨询玻璃锥关节的相关问题。

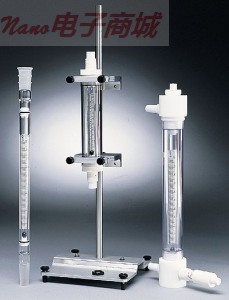

 Gilmont Unshielded Flowmeter Sz. 13 Tube

Design makes each meter suitable for a broad range of laboratory applications

Modular components allow for meter flexibility across a wide range of flow rates

Multiple end connections to suit process requirements

Unshielded Flowmeters work well in low-pressure applications. Connect the flowtube end directly to tubing having the proper inner diameter—flowtube outer diameters are listed below. Glass taper joints are an alternate connection option which slip on the PTFE stops that contain the float (contact our Applications Specialists to order the glass taper joints).

Shielded Flowmeters are better suited to higher-pressure applications or for installations requiring a panel-mounted flowmeter. End bushings are molded with dual connection capability—tubing or threaded; listed below are the appropriate tubing and threaded connections provided with each meter.

Shielded Flowmeters with Valves offer flow monitoring along with precise control through an integrated 20-turn micrometer valve. The valve can be adjusted from 0.1 to 100% of maximum flow (semilogarithmic) and provides recise regulation from 0.3 to 60% of maximum flow.

Glass taper joints are available upon request—call our Application Specialists to order.
