Burkert 424014CSS传感器/件; 350 PSI MAS，传感器模块SS 1.5“NPT

Burkert 424014CSS传感器/件; 350 PSI MAS，传感器模块SS 1.5“NPT

模块化管道设计提供了构建系统，以满足应用程序的灵活性

直列式转子内置传感器和管件内置于一体的

安装方便

经济指标使用这些新的在线转子流量计系统连续测量液体流量，方便系统，只需选择一个传感器/配件，然后输出或显示模块。它所需要的是一个快速的1/4安装模块传感器，就大功告成了。

可以选择三种类型的模块：信号输出无显示，传感器，头戴式显示器或远程显示。命令而不显示信号输出模块将信号发送到一台计算机，数据记录器，或记录器。挂载远程显示模块高达30英尺的距离传感器，适用于难以触及的位置。传感器安装显示模块直接安装在传感器/装配，以提供流量和总的测量。

订购在线转子流量计系统有情提示：

第1步：选择一个传感器/配件使用下面的流量曲线拟合。

第2步：如果需要显示器，则转到步骤3，如果不需要显示器，责输出模块中无显示。

第3步：如果想显示在安装点，订购传感器安装显示器之一。或者，为了一个远程显示模块发送信号，高达30 feet.Sensor/件

这些桨轮传感器非常适合用于测量中性和侵略性，不含固体颗粒的液体。内置管件确保安装简单到管道从1/2至2。水平或垂直地安装传感器/配件。

选择聚氯乙烯（PVC），黄铜或不锈钢（SS）的传感器/配件，PVC模型配备了真正的联管接头（溶剂/融合连接）。为了黄铜和不锈钢型号NPT（F）接头适用于高温或高压应用。，SS模型特别适用于测量腐蚀性液体。接触液体部分是聚偏氟乙烯，陶瓷，氟聚合物，聚氯乙烯，黄铜或不锈钢。

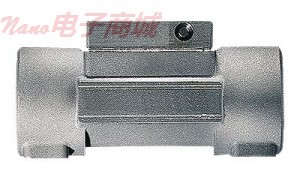

SS Sensor/Fittings; 350 psi mas, sensor module ss 1.5"npt

Modular in-line design offers the flexibility of building your system to meet your application

In-line rotor sensor and pipe fitting are built into one piece for

easy installation

Economically measure continuous liquid flow using these new in-line rotor flowmeter systems. To complete your system, simply select a sensor/fitting then an output or display module. All it takes is a quick 1/4 turn to mount the module on the sensor and you are ready to go!
Choose from three types of modules: signal output without display, sensor-mounted display, or remote display. Order signal output module without display to send signals to a computer, datalogger, or recorder. Mount remote display module up to 30 feet away from the sensor—ideal for hard-to-reach locations. Sensor-mounted display module mounts directly on the sensor/fitting to provide flow rate and total measurements.
A helpful hint when ordering the in-line rotor flowmeter system.
Step 1: Pick a sensor/fitting using the flow curve below.
Step 2: If you need a display, go to step 3. If you do not need a display, order one of the output modules without display .
Step 3: If you want the display at the point of installation, order one of the sensor-mounted display. Or, order a remote display module to send signals up to 30 feet.Sensor/Fittings
These paddle-wheel sensors are ideal for measuring both neutral and aggressive, solid-free liquids. Built-in pipe fittings ensure simple installation into pipes from 1/2" up to 2". Mount sensor/fittings horizontally or vertically.
Choose from polyvinyl chloride (PVC), brass, or stainless steel (SS) sensor/fittings. PVC models come with true union fittings (solvent/fusion connection). Order brass and SS models with NPT(F) fittings for high temperature or high pressure application. SS models are especially ideal for measuring aggressive fluids. Wetted parts are polyvinylidene fluoride, ceramic, fluoropolymer, and PVC, brass, or SS.
