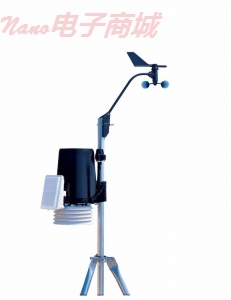

Davis Instruments 6152C 温湿度计

Davis Instruments 6152C 温湿度计



有线版本，非常适合用于信号干扰的区域

气压

预测

内部及外界温度

内部和外部的湿度

热指数

露点

月相

创纪录的降雨为分钟，小时，天，月，年和风暴

捕捉过去24风暴的降雨总量

降雨率的分钟，小时，天，月

风的方向和速度

风寒

时间和日期

日出和日落时间

风速计是可拆卸的最大的灵活性 - 安装与集成传感器组件如图所示，或单独安装使用40'（12米）电缆

雨水的极其精确的读数是自排

无线集成传感器套件上运行的太阳能发电。锂电池，提供备份在夜间和阴天，寒冷的日子

辐射防护罩内的温度和湿度传感器位于

可选的三脚架，使安装更容易。括号在该基地的支架倾斜安装在屋顶或不平坦的地形

频繁的更新时间间隔 - 每2.5秒，而以3至15分钟

复杂的预测算法。注意到风和温度的考虑 - 不只是气压

可以在控制台上超过80图形和超过70个报警

和华帝比戴维斯华帝Pro2的气象站具有更高的精度和传输距离。测量和显示气压，室内和室外的温度和湿度，热指数，露点，风向和风速，风寒雨秋天，时间，日期，预测，月相，日出和日落。天气信息滚动，在底部的数字显示更详细的信息。华帝Pro2的PLUS™型号86403-11允许您阅读紫外线指数和剂量，太阳辐射和蒸散。使用可选中继器来提高信号强度和传输距离。软件用于存储数据记录和分析天气模式，提供USB和串行端口连接版本，请参阅项目编号型号86403-54（USB）或86403-52（串口）。 86403-01和-11传球信号到数字显示通过一个100英尺长的电缆。包括内容： 100英尺（30米）电缆（传感器套件连接控制台），40英尺（12米）电缆（风速计连接到传感器套件），控制台，集成传感器组件，安装硬件和AC电源适配器

产品规格
产品类型	戴维斯Vantage Pro2
气压范围	26至32汞柱（880至1080毫巴）
气压精度	±0.03汞柱（1.0毫巴）
露点范围	-105至130°F（-76到54°C）
温度精度（里面）	1°F（0.5°C）
温度精度（外）	1°F（0.5°C）
温度范围内（内侧）	32至140°F（0至60°C）
温度范围内（外）	-40至150°F（-40至65°C）
RH范围内（内侧）	10到90％
RH范围内（外）	0至100％
RH精度（内侧）	±5％
RH精度（外）	±3％
露点精度	±3°F（1.5°C）
风速范围	2 150英里，2到130海里; 1〜67米/秒; 3至241公里/小时
风速精度	±5％
风向范围	0到360°的
风向精度	±3°F（1.5°C）
降雨范围	0至99.99
降雨量精度	±4％
时间范围	24小时（12或24小时格式）
时间精度	8秒/月
显示	液晶显示
尺寸	显示控制台： 9.5在D 传感器组件中（高）x 1.5（宽）x 6 ： 8.25（宽）x 7.25（高）x 7.75在D
功率	110 VAC
符合CE认证	是
品牌	戴维斯仪器
风寒范围	-110至130°F（-79至54°C）
风寒精度	±2°F（1°C）
型号	6152C
出厂编号	6152C

Cabled version perfect for areas with signal interference

Barometric pressure

Forecast

Inside & outside temperature

Inside & outside humidity

Heat index

Dew point

Moon phase

Record rainfall for minutes, hours, days, month, year and storm

Capture rainfall totals for last 24 storms

Rain rate for minutes, hours, days and months

Wind direction & speed

Wind chill

Time & date

Time of sunrise & sunset

Anemometer is detachable for ultimate flexibility — mount with integrated sensor suite as shown, or mount separately using the included 40' (12m) cable

Rain bucket is self-emptying for exceptionally accurate readings

Wireless integrated sensor suite runs on solar power. Lithium battery provides backup at night and during cloudy, wintry days

Temperature and humidity sensors are located inside the radiation protective shield

Optional tripod makes installation even easier. Brackets at the base of legs tilt to mount on roof or uneven terrain

Frequent update interval — every 2.5 seconds, compared to the 3 to 15 minutes found on other stations

Sophisticated forecasting algorithm. Takes wind and temperature into account — not just barometric pressure

Over 80 graphs and over 70 alarms available on the console

The Davis Vantage Pro2 weather station has greater accuracy and doubles the transmitting distance of the orginal Vantage Pro. Stations measure and display barometric pressure, indoor and outdoor temperature and humidity, heat index, dew point, wind direction and speed, wind chill, rain fall, time, date, forecasts, moon phase, sunrise, and sunset. Weather messages scroll across the bottom of the digital display for more detailed information.

Vantage Pro2 Plus™ models 86403-11 allow you to read UV index and dose, solar radiation, and evapotranspiration. Use optional repeaters to boost signal strength and transmitting range.

Software for storing (data logging) and analyzing weather patterns available in USB and serial port connection versions, see item number 86403-54 (USB) or 86403-52 (serial port).Models 86403-01 and -11 pass signals to the digital display through a 100-foot cable.

What's included: 100 ft (30 m) cable (connects console to sensor suite), 40 ft (12 m) cable (connects anemometer to sensor suite), console, integrated sensor suite, mounting hardware and AC power adapter

Specifications
Product Type	Davis Vantage Pro2
Barometric pressure range	26 to 32 in Hg ( 880 to 1080 mbar)
Barometric pressure accuracy	±0.03 in Hg (1.0 mbar)
Dew point range	-105 to 130°F (-76 to 54°C)
Temp accuracy (inside)	1°F (0.5°C)
Temp accuracy (outside)	1°F (0.5°C)
Temp range (inside)	32 to 140°F (0 to 60°C)
Temp range (outside)	-40 to 150 °F (-40 to 65°C)
RH range (inside)	10 to 90%
RH range (outside)	0 to 100%
RH accuracy (inside)	±5%
RH accuracy (outside)	±3%
Dew point accuracy	±3°F (1.5°C)
Wind speed range	2 to 150 mph; 2 to 130 knots; 1 to 67 m/s; 3 to 241 km/hr
Wind speed accuracy	±5%
Wind direction range	0 to 360°
Wind direction accuracy	±3°F (1.5°C)
Rain fall range	0 to 99.99 in
Rain fall accuracy	±4%
Time range	24 hours (12 or 24 hour format)
Time accuracy	8 sec/month
Display	LCD
Dimensions	Display console: 9.5 in W x 6 in H x 1.5 in D Sensor assembly: 8.25 in W x 7.25 in H x 7.75 in D
Power	110 VAC
CE Compliance	Yes
Brand	Davis Instruments
Wind chill range	-110 to 130°F (-79 to 54°C)
Wind chill accuracy	±2°F (1°C)
Model	6152C
Manufacturer number	6152C
