Love controls TSF-4040 J和K型，24VDC，°F温度限制控制器

Love controls TSF-4040 J和K型，24VDC，°F温度限制控制器

数字显示和调节死区非常的经济

强大的16 A，SPDT继电器最多可运行一个3/4-hp压缩机的

功能密码保护和错误消息

这些控制器用于开/关控制的应用中，一个数字显示器和一个可调节的死区需要在一个有限的温度范围内是理想的。使用与包装设备，食品冷却，低温设备，以及更多。每个控制器有三个按键编程参数，包括设定点，死区，循环时间和环境探头调整。可编程密码保护，以防止意外更改设置。多个单元可以设置“配置密钥”（另售）使用相同的程序。明亮的3位数字LED显示屏容易阅读，即使在昏暗的区域控制器可与热电偶或热敏电阻输入，热电偶的版本有两个可选的报警条件和内部蜂鸣器。FM核准限额模型包括现场可选择自动或手动复位，以及前面板或外部输入复位选项。探头单独订购。内容包括：温度控制器。

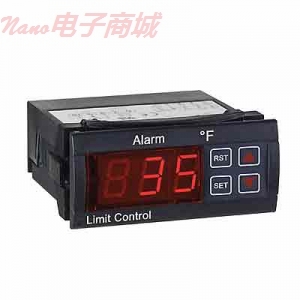

Temperature Limit Controller, Type J and K, 24VDC, ° F

Digital display and adjustable deadband for a very economical price

Powerful 16 A, SPDT relay can run up to a 3/4-hp compressor

Feature password protection and error messages

These controllers are ideal for on/off control applications where a digital display and an adjustable deadband are needed over a limited temperature range. Use with packaging equipment, food cooling and chilling equipment, and more. Each controller has three push buttons for programming parameters including set point, deadband, cycle time, and ambient probe adjustment. Programmable password protection prevents accidental changes to settings. Multiple units can be set with the same program with the use of a “configuration key” (sold separately). The bright 3-digit LED display is easy to read even in dim areas Controllers are available with a thermocouple or thermistor input; the thermocouple version features two selectable alarm conditions and internal buzzer. The FM-approved limit models include field-selectable automatic or manual reset, as well as front-panel or external input reset option. Order probes separately.
What's Included:
temperature controller.
