Love controls 16C-2 温度控制，1/16 DIN，温度输入，电压脉冲输出

Love controls 16C-2 温度控制，1/16 DIN，温度输入，电压脉冲输出

简单易用，全功能控制，以经济的价格。

双报警

RS-485 ®通信

通用控制器接受热电偶，热电阻，电压和电流输入

监视和精确控制温度或过程的应用，这些自整定控制器提供了许多选择，以满足您的应用程序。选择从1/32-，1/16-，1/8-（垂直），和1/4-DIN尺寸， 每个控制器拥有双LED，可以显示下面的信息，过程值，设定点，输出状态，工程规模，自动调节和报警状态。控制方法包括ON / OFF，PID控制，自我调整和手动调谐。PID控制只支持B系列64斜坡/保温控制选项。两个报警输出，可以快速配置的选择13内置的功能在所有车型的标准配置。一个标准的内置的RS-485接口，这些控制器可以很容易地与其他外部设备，如PC和PLC进行通信。其他功能包括

Love Temperature Control, 1/16 DIN, Temperature Input, Voltage Pulse Output

Simple to use, full featured controls at an economical price.

Dual alarms

RS-485 Modbus® Communication

Universal controller accepts thermocouple, RTD, voltage and current input

Monitor and control temperature or process applications with precision, these self-tuning controllers offer many options to fit your application. Choose from 1/32-, 1/16-, 1/8- (vertical), and 1/4-DIN sizes.

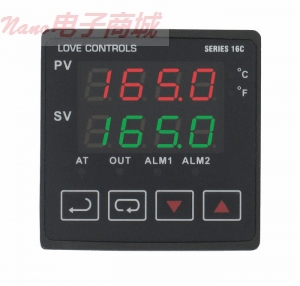

Each controller has a dual LED that can display the following information, process value, set points, output status, engineering scale, auto tuning and alarm status. Control methods include ON/OFF, PID, self-tune and manual tune. PID control is supported only on the B-series with 64 ramp/soak control options. Two alarm outputs are standard on all models which can be quickly configured with the choice of thirteen built-in functions. With a standard built-in RS-485 interface these controllers can easily communicate with other external devices such as PCs and PLCs. Other functions include:
