Raytek RAYMID10LTCB8 MI3传感器，标准模式，10:1，-40-600°C，8M线

Raytek RAYMID10LTCB8 MI3传感器，标准模式，10:1，-40-600°C，8M线

经济的价格和易于安装，使得的MI3理想放置在多个点沿着一个过程。

用户可配置的模拟输出（0/4-20毫安，0-5/10V类型J，K，R或S型热电偶）

坚固耐用的传感头生存环境温度250°F（120°C）

发射率可调，峰值保持，谷值保持和平均功能

的DataTemp®多点和现场校准软件

直观的用户界面，高分辨率的液晶显示屏

标准USB 2.0数字接口，远程设置

虽然体积小雷泰®MI3设有1％10:1光学精度，专为广泛的应用。这些经济型的红外传感器用于高温的目标可能损害或破坏接触式传感器的应用。两件式红外系统由一个微型传感头和独立的通讯电子产品。通过分离的两个组成部分，它允许传感器可以安装在任何地方，从恶劣的条件下仍能保护电子。该传感器被安置在一个坚固的NEMA 4（IP65）额定不锈钢外壳，确保长期性能，即使在环境温度高达250°F（120°C），而不冷却的环境中。MI3提供了一系列先进的信号处理拥有你通常会发现传感器成本得多。标准功能包括可调发射率，峰值保持，谷值保持和平均功能。所有传感器参数调整容易，内置的用户界面键盘或远程的DataTemp软件，通过内置的USB接口上。先进的功能，包括一个用户可配置的报警输出，数字“配方”表输入，可以方便地连接到外部控制系统，一个外部复位信号输入信号处理和模拟发射率调整的外部输入或反射能量补偿。什么的包括：两片传感器与电缆的DataTemp软件。

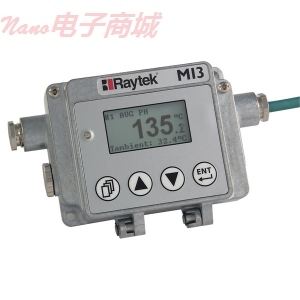

Mi3 Sensor, Standard Model, 10:1, -40-600°C, 8m Cable

Economically priced and easily installed makes the MI3 ideal for placement in multiple points along a process.

User configurable analog outputs (0/4-20mA, 0-5/10V and type J, K, R or S thermocouple)

Rugged sensing heads survive ambient temperatures to 250ºF (120°C)

Adjustable emissivity, Peak Hold, Valley Hold and Averaging functions

Datatemp® Multi-drop and field calibration software included

Intuitive user interface with high resolution LCD display

Standard USB 2.0 digital interface for remote set-up

Although small in size the Raytek® MI3 features 1% accuracy with 10:1 optics designed for a wide range of applications. These economical infrared sensors are used in applications where the high temperature of the target could damage or destroy a contact sensor. The two-piece infrared system is made up of a miniature sensing head and separate communication electronics. By separating the two components it allows the sensor to be installed just about anywhere and still protect the electronics from harsh conditions. The sensor is housed in a rugged NEMA 4 (IP65) rated stainless steel enclosure that ensures long term performance, even in environments with ambient temperatures up to 250°F (120°C) without cooling.

The MI3 offers a host of advanced signal processing features you normally find in sensors costing much more. Standard features include adjustable Emissivity, Peak Hold, Valley Hold, and Averaging function. All sensor parameters are easily adjustable on the built-in user interface keypad or remotely with the DataTemp software via the built-in USB interface. Advanced features including a user configurable alarm output, digital “recipe” table inputs that can be easily interfaced to an external control system, an external reset signal input for signal processing, and external inputs for analog emissivity adjustment or reflected energy compensation.
What's Included:
two piece sensor with cable and DataTemp software.
