Raytek Comapact CM系列红外传感器J型T / C输出与3'电缆

Raytek Comapact CM系列红外传感器J型T / C输出与3'电缆

雷泰CM传感器的是OEM和最终用户的应用的理想解决方案 - 体积小巧，功能强大，价格合理，易于安装。

取代了传统的接触式探头，可扩展的0-5 V，J型或K输出

宽温度范围：-4°F至932°F（-20至500ºC）°

坚固的13:1光学90％的能源

坚固的IP 65（NEMA-4）不锈钢外壳

传感器状态/自我诊断指示灯LED

雷泰CM传感器的被广泛的制造工艺和OEM应用设计的连续温度监控。该传感器提供了一个功能强大，结构紧凑，集成传感器的红外温度测量的优势。CM传感器可以很容易地取代传统的接触式探针，J型或K型热电偶输出，用户可扩展0-5伏的输出。机载电子设备的传感器是一个坚固的IP 65（NEMA-4）不锈钢外壳保护，无需冷却功能允许传感器在环境温度可达160°F（70°C）。内置的传感器健康LED传感器的工作状态和辅助线指标提供了方便，解决最初的传感器设立。虽然体积小，装有先进的功能，包括RS232数字接口，24伏直流报警，峰值保持，谷值保持，可变平均信号处理，目标发射率可调设置窗口透射率可调CM。的DataTemp多点软件是包括每个传感器允许用户配置所有的可编程传感器变量。内容包括：软件

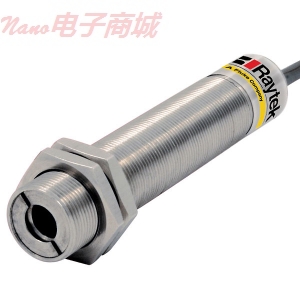

Comapact CM-Series Infrared Sensor Type-J T/C Output with 3' Cable

The Raytek CM Sensor is the ideal solution for both OEM and end-user applications – compact, powerful, affordable and easy to install.

Replaces traditional contact probes with a scaleable 0-5 V, type J or K output

Wide temperature range: -4ºF to 932ºF (-20 to 500ºC) °

Rugged 13:1optics at 90% energy

Rugged IP 65 (NEMA-4) stainless steel housing

Sensor status/self-diagnostic indicator LED

The Raytek CM Sensor is designed for continuous temperature monitoring in a broad range of manufacturing processes and OEM applications. The sensor provides the advantages of infrared temperature measurement in a powerful, compact, integrated sensor. The CM sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output, or with a user scaleable 0-5 volt output. The sensors onboard electronics are protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing the sensor to function in ambient temperatures up to 160°F (70°C) without cooling. The built-in sensor health LED provides a convenient on-line indicator of the sensor's operating status and aids in troubleshooting initial sensor set up. Although small in size, the CM is loaded with advanced features including; RS232 digital interface, 24 volt DC alarm, peak hold, valley hold, variable averaging signal processing, adjustable target emissivity settings and adjustable window transmissivity. DataTemp Multidrop software is includes with each sensor allowing the user to configure all programmable sensor variables.
What's Included:
Software
