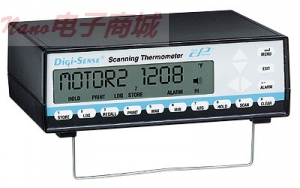

Digi-Sense 01X339303 热电偶计

Digi-Sense 01X339303 热电偶计

存储和调用多达4680组读数时间和日期

自动或手动显示，记录和输出的温度读数

调遣单独校准每个探头，实现精度为读数的±0.1％

双向RS-232设置或PC数据记录

图在实时使用新的CD-ROM软件（包含）

包括一个实时时钟，非易失性存储器，和并行打印机输出扫描和记录多达12个热电偶输入的任意组合，J，K，T，E，N，B，R，S型热电偶探头每通道单独选择热电偶类型。数据记录功能可自动存储多达4680组读数。下载读数到您的计算机或存储的数据。连接多达8个装置，共同拓展渠道能力。

依次拍摄温度数据，让您可以监视和记录过程变化理想的统计过程控制。易于使用的前面板MENU键，可以让你的程序数据记录和打印间隔，扫描速度，日期和时间，温度刻度（degF摄氏度，K，或者DEGR），分辨率（0.1或1deg），显示通道，热电偶型，和数据输出参数。每个通道特性保持，商店，MAX和MIN（测量

当同时监测温度在不同的过程步骤或阶段是至关重要的，这些新的12通道扫描温度计的理想选择。壁挂式单元是用于永久安装连续监测流程的理想选择。台式机接受任何电源的地方，当它可能被用来给你很大的灵活性。两款机型的功能作为的clatalogger数据存储在非易失性存储器和后来下载到您的打印机或PC。链接这两个系列车型在拓展渠道的数量，你可以扫描。每12热电偶输入可编程扫描从每四秒每小时。

Store and recall up to 4680 sets of readings with time and date

Automatically or manually display, record and output temperature readings

Field calibrate each probe separately—achieve accuracies of ±0.1% of reading!

Bidirectional RS-232 for setup or PC datalogging

Graph in real time—use new CD-ROM software (included)

Includes a real-time clock, nonvolatile memory, and parallel printer output

Scan and log up to 12 thermocouple inputs from any combination of J, K, T, E, N, B, R, and S thermocouple probes.Thermocouple type is individually selectable per channel.Datalogging feature automatically stores up to 4680 sets of readings.Download readings or stored data to your computer. Link up to 8 units together to expand channel capacity.Sequentially captures temperature data, allowing you to monitor and record process variations-ideal for statistical process control.Easy-to-use front panel MENU key lets you program datalogging and print intervals, scan rate, date and time, temperature scale (degF, degC, K, or degR), resolution (0.1 or 1deg), channels displayed, thermocouple type, and data output parameters.Each channel features HOLD, STORE, MAX and MIN (measur

When simultaneous monitoring of temperatures during different process steps or phases is critical, these new 12-channel scanning thermometers are ideal. Wall mount unit is ideal for permanent installation and continuous monitoring of your processes. Benchtop unit accepts most any power source giving you great flexibility as to where and when it may be used. Both models function as a clatalogger-store data in the non-volatile memory and later download to your printer or PC. Link both models in series to expand the number of channels you can scan. Each of the 12 thermocouple inputs are programmable to scan from every four seconds to hourly.
