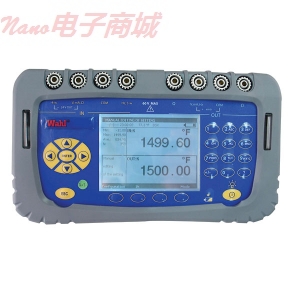

Palmer Wahl C75 多功能校准仪

Palmer Wahl C75 多功能校准仪

接受热电偶，热电阻，电压，电流输入

额外的输入/输出模块扩展记录功能

高度精确现场，实验室测量型号测量产生的电压信号，电流信号和电阻信号

缩放，步骤，合成器，平方根，统计功能使先进的数据开发变的更加容易

快速连接端子香蕉插头，TC连接器或裸电线（直径3mm）坚固的IP54防震保护套

基于微处理器的记录仪可轻松地自定义您的应用程序！

只需从5个可选的输出模块选择一个记录仪，以满足您的要求。

所有型号的校准仪都配备了符合人体工程学的设计和嵌入式软件，整合了所有校准功能，来校准工业加工仪表。所有型号都设有大双显示屏，使现场测量和输出更加容易读书，作出调整。从四种型号中选择，可带压力或无压力，均是高精度。可带或不带校准读数记忆储存卡，校准数据可以下载到电脑进行分析并出具校准证书。

型号特点

隔离通道同时测量产生

电阻探头，热电偶产生温度

频率频率信号，干触点频率信号

USB连接/镍氢充电电池

C75型号的附加功能

选配外部压力模块时压力测量

温度或压力开关测试

10000条记录储存能力

与选配DataCal精简版或21 CFR Part 11兼容，FDA兼容DataCal软件

C100型号的附加功能

同C75一样，但精度更高的实验室级精度（规格可选）

C150型号的附加功能

可供最高精确度0.005％1年以上（规格可供选择）

完全符合NADCAP热处理标准

热敏电阻校准

HART传感器校准（包括HART兼容软件）

双输比较法校准（输入/输出或输入/输入）

蓝牙接口

包含：保护罩，配置6测试引线，快速充电电池设备，颈/肩带，桌面支架，用户手册光盘，厂商出具的NIST可溯源校准文件。

Accepts thermocouple, RTD, voltage, and current inputs

Additional input/output modules expand recorder capability

Highly Accurate Field and Lab Measurement Models Measure & generate voltage, current & resistance signals

Scaling, steps, synthesizer, square root, statistical functions make advanced data exploitation easier

Quick connect terminals for Banana Plugs, TC connectors or bare wires (to 3mm in diameter)Rugged IP54 construction with anti-shock boot

Our microprocessor-based recorders are easy to customize to your application!

Simply choose a recorder, then select from five optional output modules to satisfy your requirements.

All calibrator models feature an ergonomic design and embedded software allowing your to integrate all your required calibration functionality for a broad range of industry process instrument calibrations into a single unit.All models are designed with a large dual display which makes measure and sourcing in the field easy to read and make adjustments. Choose from four models with or without pressure, average to high-level accuracy, and with or without memory for storage of calibration readings which can be downloaded into a PC for analysis and to issue calibration certificates.

Features of all Models

Simultaneous measurement & generation on isolated channels

Temperature by Resistive Probes & Thermocouples

Frequency for frequency signals & for dry contacts

USB connection/Rechargeable NiMH Batteries

Additional Features of C75 Model

Pressure measurements when used with optional external pressure modules

Switch Test for temperature or pressure

Memory capacity of 10,000 records

Compatible with optional DataCal-Lite or 21 CFR Part 11, FDA compliant DataCal software

Additional Features of C100 Model

Same as C75 but with higher precision Laboratory-Grade accuracy (specifications available)

Additional features of C150 Model

Highest accuracy available - 0.005% over 1 year (specifications available)

Full compliance with NADCAP heat treatment standard

Calibration of Thermistors

Calibration of HART transmitters (includes HART compatible software)

Comparison calibration with dual input channels (In/Out or In/In)

Blue Tooth Interface

What's Included:

Protective Boot, set of 6 test leads, quick charging battery system, neck/shoulder strap, desktop stand, user manual on CD, and a NIST-Traceable calibration document provided by the manufacturer

产品规格
产品类型	多功能校准器
符合CE认证	是
品牌	Palmer Wahl
生产编号	C75

Specifications
Product Type	Multi-function Calibrators
CE Compliance	Yes
Brand	Palmer Wahl
Manufacturer number	C75
