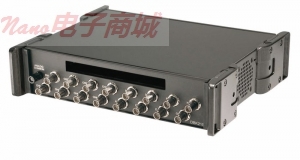

IOTech DBK215 高精度数据采集板

IOTech DBK215 高精度数据采集板

USB和PCI板多功能数据采集和控制应用

这系列高速USB和PCI板提供1 MHz的16位分辨率的A / D。每块板提供模拟输入，高速数字I/O，计数器（包括编码器测量），定时器输出，以及可选的模拟输出。内置集点功能提供低至2微秒的低延迟输出控制。这些高速3000系列板卡满足最苛刻的数据采集和控制的应用要求。USB数据采集板都配备了一个68针的SCSI和40针信号连接头。可选的端子板（18806-60）提供简单的螺丝端子连接。端子板直接安装附带的硬件DaqBoard上。四板热电偶输入通道也包括每个DaqBoard上的PCI数据采集卡连接到PDQ30扩展模块，提供配备了68针的SCSI连接器，用于信号连接带有HDMI扩展连接器（型号18806-28除外）额外48SE/24DE模拟输入随着热电偶测量能力。可选的信号连接配件包括螺钉端子板（18806-62）或BNC连接盒（18806-66）。DaqView ™软件

轻松设置硬件，通过一个简单的电子表格风格屏幕采集和显示参数，无需编程。DaqView是一个全功能的软件包，它提供实时显示数字，刻度盘，柱状图，条状图和范围样式格式。直接导出数据到Excel或多种输出格式，包括文本，WAV，UFFA，UFFB。

USB and PCI boards for multi-function data acquisition and control applications

These series of high speed USB and PCI boards offer a 1-MHz A/D with 16-bit resolution. Each board provides analog input, high speed digital I/O, counters (including quadratrure encoder measurement), timer outputs, and optional analog outputs. Built in set point functionality provides low latency output control as low as 2 µSec. These high speed 3000 series boards meet the most demanding data acquisition and control application requirements.

USB Data Acquisition Boards are equipped with a 68-pin SCSI and 40-pin headers for signal connections. Optional terminal board (18806-60) provides easy screw terminal connections. The terminal board mounts directly onto the DaqBoard with included hardware. Four on-board thermocouple input channels are also included on each DaqBoard.

PCI Data Acquisition Boards feature a 68-pin SCSI connector for signal connection along with an HDMI expansion connector (except model 18806-28) for connecting to a PDQ30 expansion module which provides an additional 48SE/24DE analog inputs along with thermocouple measurement capability. Optional signal connection accessories include screw terminal board (18806-62) or BNC connection box (18806-66).

DaqView™ Software

Easily set up your hardware, acquisition, and display parameters without programming via a simple spreadsheet-style screen. DaqView is a full-featured software package that provides real-time displays in digital, dial, bar graph, strip chart, and scope style formats. Export data directly to Excel or a variety of output formats including Text, .wav, UFFA, and UFFB.
