Track it 模拟5 V跟踪™记录仪显示，5 V模块和长寿命电池

Track it 模拟5 V跟踪™记录仪显示，5 V模块和长寿命电池

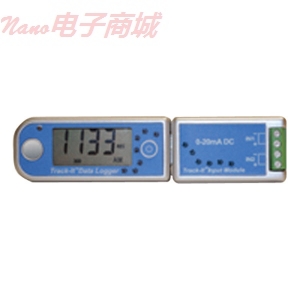

Analog 5 V Track It™ Logger with display, 5 V module and long-life battery

坚固整体覆盖保护肮脏环境中记录仪

精度±0.5％

记录500mVDC，1VDC，5VDC，10VDC，或​​20mA

能够记录温度

可选为期三年的长期记录电池

使用这些数据记录器的各种直流电压和电流的应用，如工业过程监测，生产力检查和故障排除。

每个数据记录器是一个电池供电独立小巧型数据记录仪，记录多达64,000个直流电压和电流数据样本。记录温度读数，如果您选择不连接任何模块。配置单元在预定的时间和日期开始和停止记录，或仅在报警条件感觉到。你可以选择一个标准的电池或长寿命电池。

Track-It™软件是一个数据记录器功能丰富的软件套件。简单的设置，检索，解释和出口所记录的数据。您可以查看数值数据表或直流电压/电流读数相对于时间的图形表示。把记录器插进电脑开放的一个USB端口，软件自动识别记录器。USB接口电线单独出售。该软件还可以通过电脑直接产生的流电压或电流数据，把您的电脑变成一个实时数据采集系统。使用一键导出功能，自动存储数据导出到Excel ®电子表格。

包括：Track-It™软件和电池

Rugged overall cover protects logger in dirty environments

±0.5% accuracy

Records 500mVDC, 1VDC, 5VDC, 10VDC, or 20mA

Capable of recording temperature

Optional three-year battery for long-term recording

Use these data loggers for various DC voltage and current applications, such as monitoring industrial processes, productivity checks, and troubleshooting. Each data logger is a battery powered stand alone compact data logger that records up to 64,000 samples each of DC voltage and current data. Record temperature readings if you choose by not connecting any modules. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. You can choose from a model with a standard battery or one with a long-life battery.

Track-It™ software is a features-packed software package that is included with every data logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. You can view a numerical data table or graphical representation of DC voltage/current readings relative to time. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger, USB interface cable sold separately. The software can also turn your PC into a real-time data acquisition system by allowing you to stream voltage or current data as it occurs directly to your PC. Use the one click export function to automatically export stored data into an Excel® spreadsheet.

What's Included:

Track-It™ software and battery
