AEMC L562 数据记录仪

AEMC L652 数据记录仪

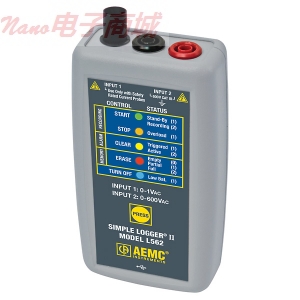

Simple Logger II TRMS Voltage/Current Model L562

型号L322

2个独立的输入通道

-20到+20 MADC

可编程存储速率，8每秒到1每天

3用户可选择的存储模式

非易失性存储器中可存储多达240,000测量结果

保存之前缩放管理通过软件输入的单位

标准碱性电池

轻便，小巧，携带很方便

5个LED指示灯快速，清晰地显示记录器的状态

50V Cat. I

型号L562

2个输入通道

电压：0〜600VAC/DC TRMS

电流：与电压输出的电流探头兼容（见第13页）

每周期64个样品

3用户可选择的存储模式

可编程存储速率，8每秒到1每天

非易失性存储器中可存储多达240,000测量结果

标准碱性电池

轻便，小巧，携带很方便

5个LED指示灯快速，清晰地显示记录器的状态

300V Cat. IV 600V Cat. III连接额定电流探头

包含：

DataView®软件数据存储，实时波形显示，分析和生成报告，USB连接线。

Model L322

2 independent input channels

-20 to +20mAdc

Programmable storage rates from 8 per second to 1 per day

3 user selectable storage modes

Stores up to 240,000 measurements in non volatile memory

Scaling and engineering units inputted through software prior to saving

Powered by standard Alkaline batteries

Lightweight, compact, fits anywhere

5 LED indicators quickly and clearly display logger status

50V Cat. I

Model L562

2 input channels

Voltage: 0 to 600Vac/dc TRMS

Current: compatible with current probes with voltage outputs (see page 13)

64 samples per cycle

3 user selectable storage modes

Programmable storage rates from 8 per second to 1 per day

Stores up to 240,000 measurements in non-volatile memory

Powered by standard Alkaline batteries

Lightweight, compact, fits anywhere

5 LED indicators quickly and clearly display logger status

300V Cat. IV; 600V Cat. III with a safety rated current probe attached

What's Included:

DataView® software for data storage, real-time waveform display,analysis and report generation, USB cable.

产品规格
产品类型	数据记录仪
电流/电压决议的	0.1 V
测量范围	电流：0到1伏 电压：0至600 VAC
直流电压范围	600 V
工作温度	15到122°F  （-10到50℃）
接口	光隔离USB 2.0（包括A型5针迷你B型USB电缆）
记忆	可编程从125毫秒到1天
内存容量	240,000测量（512 KB）。记录的数据存储在非易失性存储器和保留，即使电池电量低或删除。
通道号	电流 电压
电池寿命	101小时> 45天 （依赖于采样率和记录长度）
准确性	目前的 0至10毫伏：不详 10至50毫伏：±（0.5％读值+ 1毫伏） 50到600 V：±（0.5％读数+ 0.5 V） 电压 0〜5 V：未指定的 5至50 V：± （0.5％读值+ 1 V） 50〜600 V：±（0.5％读数+ 0.5 V）
功率	两节1.5 V AA电池
采样率	64个采样点/周期
品牌	AEMC
出厂编号	2126.35
型号	L652
连接	当前位置：BNC  电压：两个凹进香蕉插孔

Specifications
Product Type	Data Loggers
Current/voltage resolution	0.1 V
Measuring ranges	Current: 0 to 1 VAC Voltage: 0 to 600 VAC
DC voltage range	600 V
Operating temperature	15 to 122°F (-10 to 50°C)
Interface	USB 2.0 optically isolated (includes type A to 5-pin mini-B USB cable)
Memory	Programmable from 125 mS to 1 day
Memory capacity	240,000 measurements (512 KB). Recorded data is stored in nonvolatile memory and retained even if battery is low or removed.
No. of channels	Current Voltage
Battery life	101 hours to >45 days (dependent on sample rate and recording length)
Accuracy	CURRENT 0 to 10 mV: unspecified 10 to 50 mV: ±(0.5% of rdg + 1 mV) 50 to 600 V: ±(0.5% of rdg + 0.5 V) VOLTAGE 0 to 5 V: unspecified 5 to 50 V: ±(0.5% of rdg + 1 V) 50 to 600 V: ±(0.5% of rdg + 0.5 V)
Power	Two 1.5 V AA batteries
Sampling rate	64 samples/cycle
Brand	AEMC
Manufacturer number	2126.35
Model	L652
Connections	Current: BNC Voltage: Two recessed banana jacks
