Sabio 1002/1004大气采样总管

Overview

Collecting and distributing homogenous air samples for analysis is easy with the Model 1002 and 1004 heated sample manifolds. With the ability to work equally well in dry, humid or chemically harsh environments, each manifold is well suited for any monitoring project.

For durability and reactive inertness, the Model 1002 is constructed of 316 stainless steel and the Model 1004 is constructed with 1” high grade boron-silicate glass. Particulate build-up and sample degradation are minimized all over full-length due heated and vertical design.All manifolds are built to our customer’s specifications.

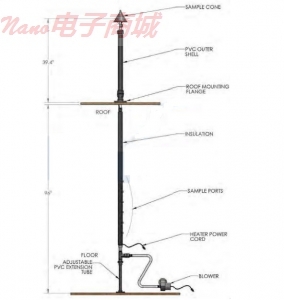

Heated Sample Manifold

SPECIFICATIONS

Models 1002, 1004

Rain & dust protection Sample cone

Sample heating Full length

Sample outlet ports Six ¼” (6.35 cm) - standard,

additional available

Temperature Thermocouple controlled

Fully wired and insulated

Construction Blower High capacity up to 40 cubic

feet per minute CFM and

outside exit flange

Mounting Flange and gasket

hardware for roof & floor

mounting

Power Power Standard 98-132 VAC (optional 196-264 VAC) Operation, 250 VA,50/60 Hz.

Add 50 VA for 24” (60.96 mm) sample

manifold extension

Options, Accessories and Custom Manifold lengths

Additional sample ports

Gas analyzer sample stream valves

Bug Screen Cleaning kit

Temperature Control

Water trap
