Tramex CME 4 混凝土水分测定仪 Encounter, complete MO-9506

Concrete Encounter CME4

混凝土Encounter CME4 是一个手持式电子水分测定仪无损阻抗测量原理操作。平行共面电极被安装在基座其中，在操作期间，从混凝土地面砂浆层大约深度0.5-0.75英寸（12-20mm的）里传输低频信号。 当混凝土在正常情况下不能完全干燥时,仪器符合最低要求的干物质上调校。在操作中它比起阻抗变化引起的潮湿会显示出一个清晰，易于阅读的模拟表盘。

The Concrete Encounter CME 4 is a hand-held electronic moisture meter operating on the principle of non-destructive impedance measurement. Parallel co-planer electrodes are mounted on the base which, during operation, transmit low-frequency signals into the concrete floor screed to a depth of approx. 0.5-0.75 in. (12-20mm).

While concrete under normal conditions can never be completely dry, the instrument has been calibrated on acceptably dry material. In operation it compares the change in impedance caused by the presence of dampness and displays this on a clear, easy-to-read analog dial.

即时读物

无损操作

无需探测，钻或机械地破坏表面

重复性

电池供电

口袋大小

清晰，便于阅读模拟拨号

0-6混凝土砂浆/ 0-9石膏找平

接触弹簧针弥补混凝土渗透不均匀,提高信号穿透力

带有阅读功能

由地板厂家建议

Instant Readings

Non-destructive in operation

No need to probe or drill or mechanically damage the surface

Reproducible results

Battery Operated

Pocket Sized

Clear, easy to read analog dial

0-6 concrete screed / 0-9 gypsum screed

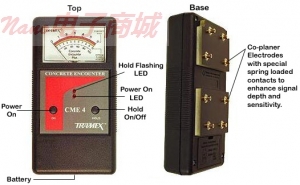

Spring-loaded contact pins compensate for uneven concrete and boost signal penetration

Hold reading function

Recommended by flooring manufacturers

操作步骤：

进行水分测试，只需刷灰尘从具体的平滑区域，也从电极，接通混凝土相遇，将CME 4坚定地在表面上，完全压缩弹簧加载的信号增强了CME 4的基础上的接触。读取从的模拟拨号的水分含量。

The CME 4 校准给在一个干净，裸露无灰尘的混凝土楼板百分含水率的读数，从而通过板坯表面上的油漆，涂料，粘合剂或其他材料上采取的混凝土板读数应被视为定性或相对的而不是定量的。

Operating Procedure:

To carry out moisture tests simply brush any dust from a smooth area of concrete and also from electrodes, switch on the Concrete Encounter, place CME 4 firmly onto the surface, fully compressing the spring loaded signal enhancing contacts on the base of the CME 4. Read the moisture content from the clear analog dial.

The CME 4 is calibrated to give percentage moisture content readings on a clean, bare dust free concrete floor slab, thus readings taken on concrete slabs through paint, coatings, adhesives or other materials on the surface of the slab should be regarded as qualitative or comparative and not quantitative.

技术参考

大小： 6“X​​3”X1.5“（150毫米x85毫米毫米x 38毫米）

重量： 10.5盎司 （298 G）

结构： ABS塑料主体

功率： 9伏PP3电池

显示方式： 类似物

测量范围： 至6％以上的混凝土

0至10％的石膏砂浆

0到100参考尺度

Technical Data

Size: 6"x3"x1.5" (150mm x 85mm x 38mm)

Weight: 10.5 oz. (298 g)

Construction: ABS Body

Power: 9 volt PP3 Battery

Display: Analog

Measuring Range: to over 6% concrete

0 to 10% gypsum screeds

0 to 100 Reference scale
