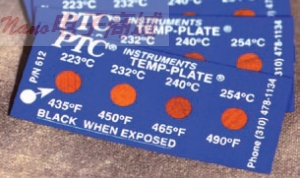

Temp-Plates® 温度记录贴纸 TH-612.4

温度记录贴纸 Temperature Recording Decal

TEMP-Plates®适用于各种温度范围是在各种精确到±1％，是N.I.S.T.二级标准。每包10包含的生产批号。它们的微型尺寸允许安装在其他设备上。

Temp-Plates® are available in a variety of temperature ranges with an accuracy of ±1% and are calibrated on N.I.S.T. secondary standards. Each package of 10 contains a lot number for traceability. Their miniature size allows installation where other devices are impractical.

Temp-Plate®温度记录贴纸仅有3/4"x 1- 3/4" 0.01厚。Temp-Plates®可粘附大多数表面抗溶剂，燃料，油脂，油，水和蒸汽。

The Temp-Plate® Decal measures only 3/4"x 1- 3/4"and is 0.01" thick. Temp-Plates® stick to most surfaces and resist solvents, fuels, grease, oil, water and steam.

以下是Temp-Plate®的应用。监控过热磨损和摩擦在机械部件如轴承，齿轮箱，传动壳体，散热器和热交换器。检查过热的电子部件，如管，变压

器，电阻器，电路板，和晶体管。监控电气设备，如变压器，继电器，发电机，整流器，电机外壳和轴承，和地下电力线路。监控车辆和商用飞机

的预防性维护，如发动机，液压系统，轮毂，轮胎，刹车，冲击，加热系统和航空电子设备。防止物料如药品，心脏起搏器，食品，化学品和电影

相关的物质变质。

The following are only a few of the many applications for which the Temp-Plate® can be used. Monitoring overheating wear and friction in machinery parts such as bearings, gear boxes, transmission housings, radiators and heat exchangers. Check overheated electronic parts such as tubes, transformers, resistors, circuit boards, and transistors. Monitor electrical equipment such as transformers, relays, generators, rectifiers, motor casings and bearings, and underground power lines. Monitor vehicles and commercial aircraft for preventative maintenance such as engines, hydraulic systems, wheels, tires, brakes, shocks, heating systems, and avionics. Prevent heat related deterioration of materials such as pharmaceuticals, pacemakers, foods, chemicals, and film.

技术资料

精度： ±1％

外形尺寸： 3/4 "x 1-3 / 4" (1.9 x 4.4 cm)

花纸厚度： 0.01“（0.025厘米）的

重量： 1英镑（454克）

双刻度： °F和℃，

Technical Data

Accuracy: ± 1%

Dimensions: 3/4 "x 1-3 / 4" (1.9 x 4.4 cm)

Decal Thickness: 0.01 "(0.025 cm)

Shipping Weight: 1 lb. (454 g)

Dual Scale: °F and °C

范 围
