米沃奇Milwaukee M12 热像仪

米沃奇 M12热像仪

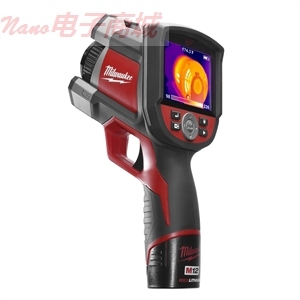

Milwaukee M12 Thermal Imager

从电机到电板都安有漏风，密尔沃基M12热像仪，排除任何热量相关的问题的故障，快速而简单。集成的数码相机拍摄的可见光照片与每一个红外图像更好地识别故障点。M12的电池可在短短30分钟内充满，也可与其他密尔沃基M12工具电池交替使用。当然还有M12的热成像仪是高强度工具，6英尺下降，仍可校准。

From motors to electrical panels to building air leakage, the Milwaukee M12 Thermal Imager makes troubleshooting any heat related issues quick and simple. The integrated digital camera captures visible light photos with every infrared image for better identification of trouble spots. The M12 battery can recharge in just 30 minutes and is interchangeable with other Milwaukee M12 tools. And of course the M12 Thermal Imager is the heavy duty tool you expect from Milwaukee, withstanding a 6' drop and remaining in calibration.

捕获热图像和可见光图像上每一个扳机的可增强型报告性能

清晰，高分辨率160 x120像素热图像,分辨效果更清晰

完整的报表软件可以​​轻松地分析图像

符合RESNET标准

广泛的温度范围（14〜662degreesF），以覆盖更多的应用程序

M12U + 2122红LITHIUMU + 2122的电池可进行快速现场更换

3.5“高分辨率LCD（640×480像素），方便排除故障

内置Visual摄像头和闪光灯，以提高分辨率

坚固的外壳增加耐用性

简单的屏幕外观可以让你专注于最佳图像

如掉落，凸起部分会保护液晶和热引擎，

铰链式相机镜头盖总是连着,所以永远不会丢失

滚花集中环很容易握紧弧形的闪光PPE

在任何程序中，所有的热图像和可见光图像使用标准的JPEG格式

附带的2GB SD卡和USB连接

Capture Thermal and Visual Images on each trigger pull for enhanced reporting

Crisp, High Resolution 160x120 pixel Thermal Images for better definition and clarity

Complete Report Software to easily analyze images

Meets RESNET standards

Broader Temperature Range (14 to 662degreesF) to cover more applications

M12U+2122 RED LITHIUMU+2122 batteries allow for rapid field replacement

3.5" High Resolution LCD (640x480 pixel) for easier troubleshooting

Built-In Visual Camera and Flashlight for improved analysis

Rugged overmolding for increased durability and grip

Simple screen layout allows you to focus on getting the best images

Raised corners protect the LCD and thermal engine if dropped

Hinged camera style lens cover is always attached, so is never lost

Knurled focus ring is easy to grip with arc flash PPE

All Thermal and Visual images use standard JPEG format for use in any program

Media door seals the included 2GB SD card and USB connections

包括：

Includes

米沃奇 2260-20 M12热像仪

热像仪​​软件报告

2GB的SD卡，USB线

M12U + 2122红LITHIUMU + 2122电池

30分钟充电器

SD卡读卡器

皮套

热像仪​​手册

软件手册

快速参考指南

校准声明

Milwaukee 2260-20 M12 Thermal Imager

Thermal Imager Report Software

2GB SD Card, USB Cable

M12U+2122 RED LITHIUMU+2122 Battery Pack

30 Minute Charger

SD Card Reader

Carrying Case

Thermal Imager Manual

Software Manual

Quick Reference Guide

Statement of Calibration

保修信息 Warranty Information

米沃奇M12热像仪带有5年质保

技术规格



The Milwaukee M12 Thermal Imager carries a 5-year warranty
