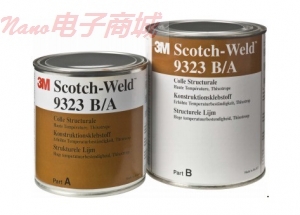

3M Scotch-Weld 9323 B/A Epoxy Adhesive 1L结构胶,WHMS435 ISS 9

主要特性

•其坚韧性提供了极高的剪切和剥离强度

•服务温度范围广

•优秀的环境阻力

•室温处理充分

3M™ Scotch-Weld™ Structural Epoxy Adhesive 9323 B/A is a two component epoxy adhesive which cures at room

temperature or with mild heat to form a tough, impact resistant structural bond. It has an excellent adhesion to a wide

variety of substrates such as metals, glass, ceramics and plastics, incl. GFRP and CFRP. Once cured it provides

extremely high shear and peel strength over a wide temperature range, with outstanding resistance to harsh environments

and chemicals commonly encountered in aerospace applications.

Key Features

• Toughened system providing extremely high shear and peel strength

• Wide service temperature range

• Outstanding environmental resistance

• Full room temperature processing

属性                          组份B                组份A

颜色                         白色                   橙色

基                          改性环氧                改性胺

一致性                       触变膏体               少量凝胶

密度                        1.18克/厘米³            1.06 g / cm³

固体                         100%                  100%

粘度(一)                      700 Pas               18Pas

混合比例按重量(按体积)               100:27(100:30)

使用期限(b)at23±2°C/晾置时间  150分钟/ 20分钟
