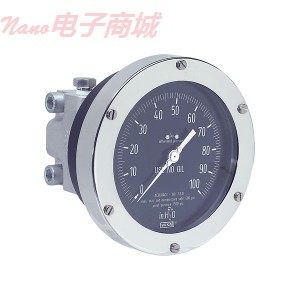

Wika 4375994 差压表膜传感元件

Wika 4375994 拨号差压表膜传感元件

适用于液体或气体介质腐蚀性的环境

膜传感元件

316L不锈钢，蒙乃尔合金，和PTFE防潮部件

卤烃膜填充

这些压力表设计的关键工艺的应用，需要中高差分和过程压力。压力表精度为±1％量程，作为超压峰值高、振动传感元件的应用。压力表应用广泛，配电盘装配。

压力表有一个传感器外壳对置高低两侧蒙乃尔合金膜卤烃填充。作为对膜的高压侧移动，运动被转移到的转矩管总成，移动的轨距面表盘上显示压力读数。型号68056-44至-56符合NACE MR-01-75标准，316L不锈钢传感器蒙乃尔合金膜，并测量差压到600 psi 超压。

For corrosive environments with either liquid or gaseous media

Membrane sensing element

316L stainless steel, Monel, and PTFE wetted parts

Halocarbon membrane fill

These pressure gauges are designed for critical process applications requiring medium to high differential and process pressure. Gauge accuracy is ±1% of span and is excellent as an overpressure sensing element for applications with high spikes and vibration.Gauges can be used in a variety of applications and are designed for panel mounting.

Gauges have a sensor cell that houses opposed high- and low-side Monel membranes in a Halocarbon fill. As the high-pressure side moves against the membrane, the movement is transferred to a torque-tube assembly, which moves the dial on the gauge face to display pressure reading. Models 68056-44 to -56 are NACE MR-01-75 compliant and have a 316L SS sensor cell with Monel membranes, and measure differential pressures to 600 psi overpressure
