Masterflex 77923-80 L / S数字模块化泵系统与易装II泵头; 0.1至600 rpm，90到260 VAC

Masterflex L / S数字模块化泵系统与易装II泵头; 0.1至600 rpm，90到260 VAC

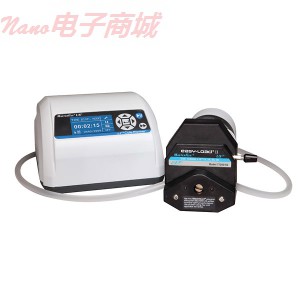

Masterflex L/S Digital Modular Pump System with Easy-Load II Pump Head; 0.1 to 600 rpm, 90 to 260 VAC

精密数字驱动器提供三种分配模式和高精度低维护电机模块化格式，让您方便放置电机和控制器

流速0.0012至3400毫升/分钟与L / S油管。流量取决于驱动器转速和泵管尺寸。

图形液晶显示四种工作模式，连续运行，定时分配，复制分配量分配。连续查看泵

菜单驱动的界面，可以选择七种语言，编程及操作

免除毫升每毫升容积分配，0.001〜9999毫升;复制1至9,999点胶周期;或SEC时间每次分配周期之间的时间间隔（1到9,999秒）

在任一方向可逆电机清洗之前或之后抽泵液管

无刷免维护电机速度控制精度±0.1％，6000-1调节比

强大的马达让你叠加2泵头流速增加，多通道应用

远程控制功能

- 可扩展速度控制输入0至20 mA，4至20 mA，0〜10 V

- 抽水方向需要打开电极开路或触点闭合

- 启动/停止/清除需要集电极开路或触点闭合

- 可扩展的转速计输出0至20 mA，4至20 mA，0〜10 V，电极开路

堆叠式防泼溅ABS塑料控制器外壳IP33额定驱动外壳环氧树脂成品钢材，IP33额定

6英尺（1.8米）电缆连接驱动器和控制器。

通过控制器背面的DB25内螺纹接头可远程控制

这些精密驱动器具有一个可编程分配间隔，让你免除方便，自动化点胶周期按时间或按体积之间的延迟设置。精确的PWM速度控制（±0.1％）的精度和效率最大化，而 ​​无刷电机，为您提供安静，免维护可靠性。程序校准，确保分配和显示精度驱动器存储校准值每管大小。计划器通过简单的键盘膜，键盘锁定/解锁功能保护设置（A）台式控制器堆叠的模块化驱动器，防水溅ABS塑料控制器外壳IP33额定驱动住房环氧树脂成品钢材，IP33额定6 -英尺（1.8米），电缆连接驱动器和控制器，远程控制功能，通过驱动器背部的一个DB25内螺纹连接器

包含： 6英尺（1.8米）电源线与IEC 320/CEE22的插座。插头/电源线驱动器随附在订货时指定目的地国家。

Precision digital drives offer three dispensing modes and precision low-maintenance motors— modular format lets you place motor and controller where convenient

Flow rate 0.0012 to 3400 mL/min with L/S tubing. Flow rate depends on drive rpm and tubing size.

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Powerful motors let you stack 2 pump heads for increased flow rates and for multichannel applications

Remote control capabilities

– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V

– Pumping direction requires open collector or contact closure

– Start/stop/purge requires open collector or contact closure

– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector

Stackable, splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated

6-ft (1.8-m) cable connects drive and controller.

Remote control capabilities via a DB25 female connector on back of controller

These precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.

(A) Modular Drives with Bench Top Controller
Stackable, splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated
6-ft (1.8-m) cable connects drive and controller.
Remote control capabilities via a DB25 female connector on back of drive
What's Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
