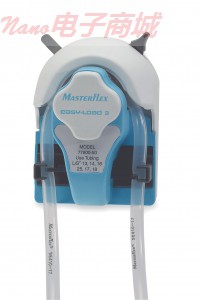

Masterflex 77800-52 L / S易装3泵头为高性能精密管材，CRS转子

Masterflex L / S易装3泵头为高性能精密管材，CRS转子

Masterflex L/S Easy-Load 3 pump head for high-performance precision tubing, CRS rotor.

无需工具或硬件安装泵头

自动油管保留速度设置和转换

流量范围：0.06〜2300毫升/分钟，取决于驱动器转速和泵管尺寸

每个泵头接受所有的6个精密管精密泵管尺寸L / S ® 13，L / S ® 14，L / S ® 16，L / S ® 25，L / S ® 17，L / S® 18

扭锁式功能让你在几秒钟内安装泵头。

包括安装板适应在两个方向上的操作过程中易装® 3 L / S驱动器锁定标签固定泵头

聚丙烯（PP）与CRS或SS转子CRS转子外壳更经济，而SS提供了更强的耐久性和耐化学性。

同侧管入口/出口便于集成到空间受限的应用，安装和运行泵头四个位置任何一个。（取决于驱动器泵头）

累计多达四个头，增加流量适合多通道应用，见头安装最大数量的单个驱动器​​的规格。

易装® 3新设计的特点是自动保留机制，使装卸管比以往任何时候都更容易。弹簧加载的闭塞杆，打开闭塞床，同时缩回管固定器。关闭杠杆和启动泵架自动控制安全架住管子。

闭塞床应用最佳闭塞力广泛闭塞的角度防止液体回流到额定压力油管。

包括：安装板/ L / S ®泵驱动器和适配器套件17“硅胶泵管长度。泵头可安装驱动。

Mount and stack heads without tools or hardware; automatic tubing retention speeds setup and changeover

Flow range: 0.06 to 2300 mL/min depending on drive rpm and tubing size

Each pump head for precision pump tubing accepts all six precision tubing sizes—L/S® 13, L/S® 14, L/S®16, L/S® 25, L/S® 17, and L/S® 18

Twist-lock mounting feature lets you mount and stack heads in seconds.

Included mounting plate adapts Easy-Load® 3 to L/S drives—locking tab secures pump head during operation in either direction

Polypropylene (PP) housing with CRS or SS rotor—CRS rotor is more economical while SS offers greater durability and chemical resistance.

Same side tubing entry/exit permits easy integration into space-limited applications—mount and operate pump head in any of four positions (depending on drive)

Stack up to four heads to increase flow capacity and for multiple-channel applications; see individual drive specifications for maximum number of heads to be mounted.

The all-new design of the Easy-Load® 3 features an automatic retention mechanism that makes loading and unloading tubing easier than ever. The spring-loaded occlusion lever opens the occlusion bed and simultaneously retracts the tubing retainers so that tubing slips right in. Close the lever and start the pump—the retainers automatically grip and hold the tubing securely in place.

The occlusion bed applies optimal occlusion force and the wide occlusion angle prevents fluid backflow up to the rated pressure of the tubing.

What’s included: mounting plate/adapter kit for L/S®pump drives and a 17” length of silicone pump tubing. Pump head comes ready to mount to drive.
