Masterflex 07551-10电脑兼容/可编程数字驱动，0.02到100转，115 / 230 VAC

Masterflex 电脑兼容/可编程数字驱动，0.02到100转，115 / 230 VAC

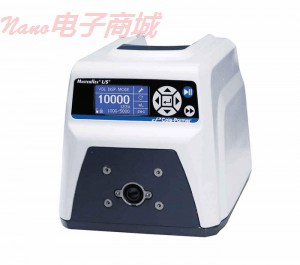

L/S computer-compatible/programmable digital drive, 0.02 to 100 rpm, 115/230 VAC

这个数字驱动接口到PC的自动化实验室和过程应用 - 作为一个独立的分配泵或使用

精密数字驱动器提供高精度免维护电机和一个全新的图形界面，使得比以往任何时候都更容易设置和操作

流速为0.001〜3400毫升/分钟与L / S油管。流量取决于驱动器转速和泵管尺寸。

图形液晶显示四种工作模式，连续运行，定时分配，复制分配量分配。泵的性能不断。

菜单驱动的界面，可以选择七种语言，编程及操作

免除毫升每毫升容积分配，0.001〜9999毫升;复制1至9,999点胶周期;或SEC时间之间的时间间隔，每次分配周期（1秒到99小时59分59秒）

无刷免维护电机提供±0.1％的速度控制精度1量程比6000

接口与PC机通过RS-232或USB连接

通过遥控DB25母接头驱动器：
-速度控制输入0至20 mA，4至20 mA或0〜10 V;
-抽水方向需要集电极开路或触点闭合;的
--Start/stop/purge需要开放收藏家或触点闭合;
-转速计输出0至20毫安，4至20 mA，0〜10 V，集电极开路

这些精密驱动器提供模拟远程控制选项和简单的编程自动化过程应用的理想选择。驱动器具有可编程分配间隔，可以让你设置方便，自动配药分配循环之间的延迟。程序校准，确保分配和显示精度驱动器存储校准值每油管尺寸
驱动程序通过简单的键盘膜，键盘锁定/解锁功能保护设置。汽车是可逆的，所以您可以清除之前或之后，在任一方向的泵和泵液管包含的内容： 6英尺（1.8米）电源线与IEC 320/CEE22的插座。插头/电源线驱动器随附在订货时指定目的地国家。

Interface this digital drive to a PC for automated lab and process applications--or use as a stand-alone dispensing pump

Precision digital drive offers a maintenance-free high-accuracy motor and an all-new graphical interface that makes setup and operation easier than ever

Flow rate 0.001 to 3400 mL/min with L/S tubing. Flow rate depends on drive rpm and tubing size.

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 sec to 99 hr, 59 min, 59 sec)

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Interface with a PC via RS-232 or USB connection

Remote control via DB25 female connector on drive:

--Speed control input 0 to 20 mA, 4 to 20 mA, or 0 to 10 V;
--Pumping direction requires open collector or contact closure;
--Start/stop/purge requires open collector or contact closure;
--Tachometer output 0 to 20 mA, 4 to 20 mA, or 0 to 10 V, open collector

These precision drives offer analog remote control options and simple programming—ideal for automated process applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size.
Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.
What's Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country specific plug/cord set; please specify ultimate destination when ordering.
