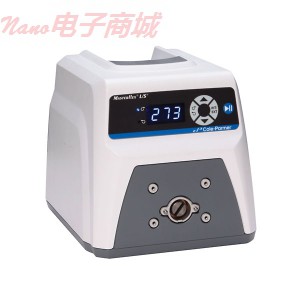

Masterflex 07528-10 L / S精密变速驱动器，远程输入6到600转，90到260 VAC

Masterflex L / S精密变速驱动器，远程输入6到600转，90到260 VAC

Masterflex L/S Precision Variable-Speed Drive with Remote Input; 6 to 600 rpm, 90 to 260 VAC.

易于使用的驱动器提供精确的速度控制和数字显示转速理想的计量应用

流量0.06至3400毫升/分钟（取决于驱动器转速和泵管尺寸）

三位数的LED显示屏显示电机转速确认速率整定一目了然

抽泵前后可逆电机清洗泵管，泵液流向任一方向

LED指示灯确认电机旋转方向

强力电机可叠加2个或4个泵头，多通道应用增加流速

独立的速度和功率控制（开/关）的同时打开泵的开/关保持速率整定

堆叠式防泼溅ABS塑料外壳，IP33额定

通过驱动器背面上DB9内螺纹连接器远程控制

速度控制输入：4至20 mA或0到10 VDC

通过集电极开路或触点闭合泵方向（CW / CCW）

启动/停止通过集电极开路或触点闭合

薄膜键盘，易涨前控制速度，方向，开始/停止

这些精确的模拟控制台驱动器具有强大的马达，速度显示，±0.25％的速度控制精确的流量调节计量应用的理想选择。远程速度控制要求DB9外螺纹连接器07595-45或07595-47电缆组件。使用远程连接器，用于控制启动/停止通过触点闭合或集电极开路（5 V TTL）或控制启动/停止通过脚踏开关77595-35。顺序控制配件面临的页面。

包括： 6英尺（1.8米）电源线与IEC 320/CEE22的插座。这些型号是特定国家的插头/电源线出货，订货时请注明最终目的地。

Easy-to-use drives offer precise speed control and digital display of rpm—ideal for metering applications

Flow rate 0.06 to 3400 mL/min (depends on drive rpm and tubing size)

Three digit LED display shows motor rpm—confirm speed setting at a glance

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

LED indicators confirm motor direction

Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications

Separate speed and power (on/off) control—maintain speed setting while turning pump on/off

Stackable, splash-resistant ABS plastic housing; IP33 rated

Remote control capabilities via a DB9 female connector on back of drive

Speed control input: 4 to 20 mA or 0 to 10 VDC

Pump direction (CW/CCW) via open collector or contact closure

Start/stop via open collector or contact closure

Membrane keypad for easy up-front control of speed, direction, and start/stop

These accurate analog console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires DB9 male connector 07595-45 or cable assembly 07595-47. Use remote connector for control of start/stop via contact closure or open collector (5 V TTL); or control start/stop via footswitch 77595-35. Order control accessories on facing page.

What's Included:

6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
