Masterflex 07024-20 标准泵头Masterflex L / S 24管PC外壳/ CRS转子

Masterflex 标准泵头Masterflex L / S 24管PC外壳/ CRS转子

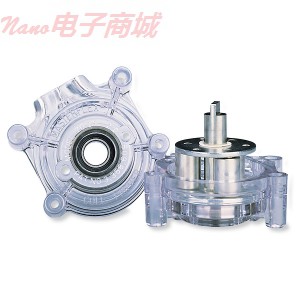

Masterflex Standard pump head for L/S 24 tubing; PC housing/CRS rotor.

非常适合需要很高的精度和可重复性的流体传输应用

精密模压成型的标准泵头，可适应单一尺寸油管使用常见的流体传输的应用程序需要的精度和出色的可重复性。

透明聚碳酸酯（PC）的外壳，无论是冷轧钢（CRS）或不锈钢（SS）的转子; CRS经济，而SS提供了更好的耐化学性和耐久性

-52机型黑色不透明的聚苯硫醚（PPS）外壳和SS转子提供最佳的耐化学性。

泵头结构紧凑，简单的设计，同一侧管进入/退出完美适用于具有空间限制的应用。

标准头结构紧凑，易于集成到您的OEM应用。更多信息请致电我们全面的OEM服务。

其经典之作，外观设计专利，这种经济泵头精确和可重复的流体输送应用的理想选择。选择标准泵头精密管普通流体传输应用程序或标准泵头高性能精密管材产生更好的压力，吸程，泵粘性流体的能力。

包括：油管装载钥匙，单通道安装硬件，15“（38厘米）长的硅胶泵管。

最新信息：

标准泵头的设计实现最精确的点胶精度任何MASTERFLEX  ®   泵头。只能使用MASTERFLEX  ®   Masterflex泵管，以确保其他管材的最佳使用性能。可能会导致保修失效。

Ideal for fluid transfer applications requiring high accuracy and repeatability

Standard heads are precision molded to accommodate a single size of tubing—use for common fluid transfer applications requiring accuracy and excellent repeatability.

Available with clear polycarbonate (PC) housing with either cold-rolled steel (CRS) or stainless steel (SS) rotors; CRS offers economy, while SS offers better chemical resistance and durability

The –52 models with opaque black polyphenylene sulfide (PPS) housing and SS rotors offer the best overall chemical resistance.

Pump head is compact and simple in design with same side tubing entry/exit—perfect for space-limited applications.

Standard heads are compact and easy to integrate into your OEM applications. Call for more information on our comprehensive OEM services.

This economical pump head with its classic, patented design is ideal for accurate and repeatable fluid transfer applications. Choose Standard pump head for precision tubing for common fluid transfer applications or Standard pump head for high-performance precision tubing for better pressure generation, suction lift, and the ability to pump viscous fluids.What's included: tubing loading key, single-channel mounting hardware, and a 15" (38-cm) length of silicone pump tubing.

Hot Tips:

The design of the standard pump head enables the most precise dispensing accuracy of any MASTERFLEX ®  pump head.

Use only MASTERFLEX ®  tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties.
