Masterflex 07536-04 L / S 4个通道的多通道泵头L / S高性能管

Masterflex L / S 4个通道的多通道泵头L / S高性能管

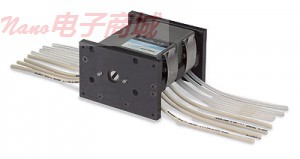

L/S 4-channel multichannel pump head for L/S high performance tubing

多管道无管卡同步低脉动流量

机械加工不锈钢（SS）和阳极化铝，不锈钢转子，轴承，可靠，连续工作负荷和辊

六辊头提供低脉动流，三辊头提供更高的流速

堆叠头扩大流动管道

兼容L/S®驱动器接受两个或两个以上的泵头; 1/10马力以上。

装入管子，锁存的闭塞床和运行泵两站管，为您提供最佳张力无需调整

流量范围：1.6-2300毫升/分钟每管道，取决于驱动器转速和泵管尺寸

泵头为L/S ® 高性能精密泵管接受两站管套，大小L/S® 15，L/S® 24和L/S® 35

双通道或四通道头可堆叠多达12个管道（取决于管道尺寸和配置）

注：多通道泵头需要两站管套，点击相关产品链接右侧订购详情。

Low-pulsation synchronous flow from multiple channels with no cartridges

Machined stainless steel (SS) and anodized aluminum with SS rotor, bearings, and rollers for reliable, continuous-duty operation

Six roller heads deliver low-pulsation flow; three-roller heads offer higher flow rates

Stackable heads let you expand the number of flow channels

Compatible with L/S® drives that accept two or more pump heads; 1/10 hp min.

Load the tubing, latch the occlusion bed, and run the pump—two-stop tubing gives you optimum tension with no adjustment

Flow range: 1.6 to 2300 mL/min per channel depending on drive rpm and tubing size

Heads for L/S® high-performance precision pump tubing accept two-stop tubing sets, sizes L/S®15, L/S® 24, and L/S® 35

Two- or four-channel heads are stackable for up to 12 channels (depending on tubing size and formulation)

Note: multichannel pump heads require two-stop tubing sets—click on the Related Products link at right for ordering details.
